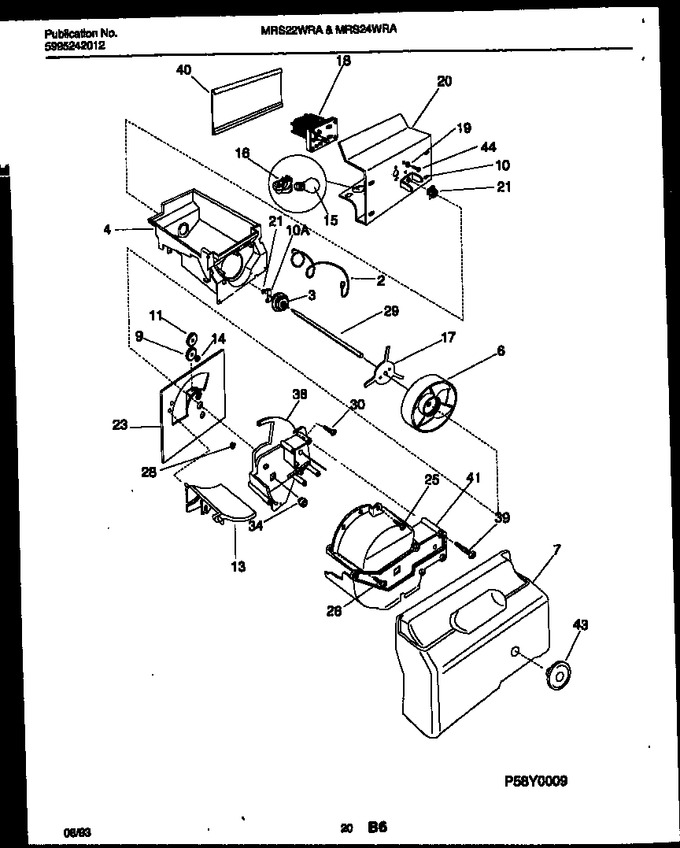

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215419000 | Auger-ice |
|
- | |||||
| 3 | 215419200 | Cam-drive |
|
- | |||||
| 4 | 215417700 | Container-ice |
|
- | |||||
| 6 | 215752800 | Drum-ice Disp |
|
- | |||||
| 7 | 215421603 | Front-ice Container |
|
- | |||||
| 9 | 215419700 | Gear-auger |
|
- | |||||
| 10 | 241726501 | Bar-drive (Replaces: 215285000) |
|
$ 58.82 | |||||
| 11 | 215755200 | Gear-mtg Plate |
|
- | |||||
| 13 | 215420600 | Gate |
|
- | |||||
| 14 | 215419900 | Bearing |
|
- | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 215767100 | Socket-light/lamp |
|
- | |||||
| 17 | 215754800 | Bar-breaker |
|
$ 85.68 | |||||
| 18 | 5304462594 | Motor Auger (Replaces: 215285400) |
|
$ 314.22 | |||||
| 19 | 215771000 | Washer, Ext Tooth Lock, No. 8 |
|
- | |||||
| 20 | 215285301 | Cover-motor |
|
- | |||||
| 21 | 241726501 | Nut-drive (Replaces: 215285100) |
|
$ 58.82 | |||||
| 23 | 215755300 | Bracket-gear Mtg |
|
- | |||||
| 25 | 215421400 | Screw,hilo ,10 X 3/4 |
|
$ 8.19 | |||||
| 26 | 215503203 | Screw,hilo Phil Pn Hd,10 X 1/2 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 28 | 215755100 | Bushing-crusher |
|
- | |||||
| 29 | 215757501 | Shaft-drive,auger |
|
- | |||||
| 30 | 215757300 | Screw,6-32 X 1/2 |
|
- | |||||
| 34 | 215748300 | Bearing |
|
- | |||||
| 38 | 215756900 | Plate-crusher Mtg |
|
- | |||||
| 39 | 215757000 | Screw,10- X 2 |
|
- | |||||
| 40 | 215363000 | Cover-mtr Mtg Brkt |
|
- | |||||
| 41 | 215756800 | Cover-crusher Assy |
|
- | |||||
| 44 | 215285200 | Screw, Tri-tap, 8-32 X .25 |
|
- | |||||
| 10A | 215757200 | Bar-drive |
|
- | |||||
| 18A | 215285500 | Harness-wiring, Auger Motor (non-illustrated) |
|
- | |||||
| 23A | 215755700 | Ring-retainer (non-illustrated) |
|
- | |||||
| 23B | 215755800 | Stud (non-illustrated) |
|
- | |||||
| 4A | 215463900 | Label-ice Container (non-illustrated) |
|
- |
