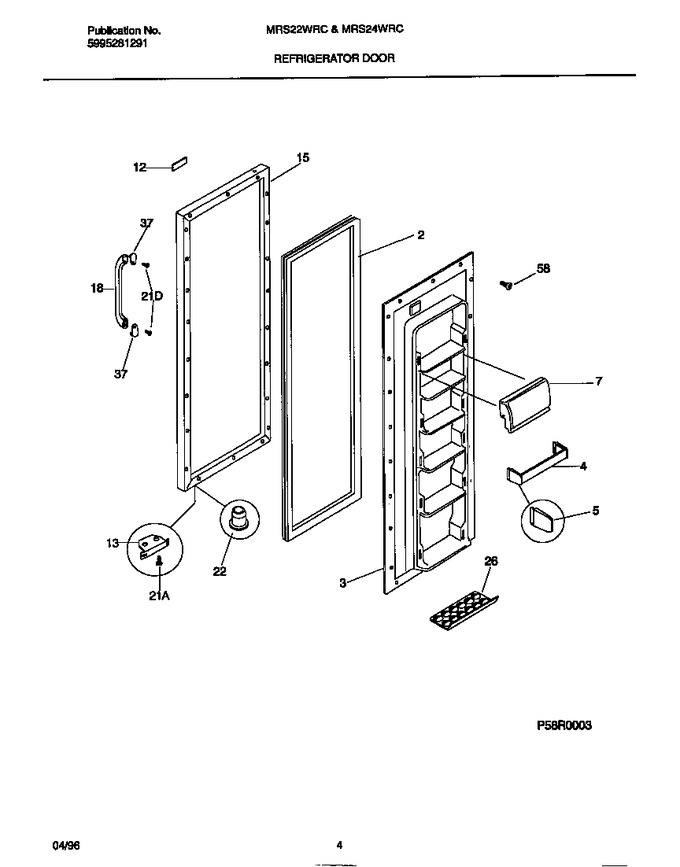

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215009801		Panel-inner Door, White, Refr		Appelez-nous	-
4	215476500		Rack, Door, W/end Caps, (5)		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215029911		Door, Dairy		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917568		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	215339601		Handle-door, White		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
37	215361401		Trim, Handle, White		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
*31083	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*31084	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
