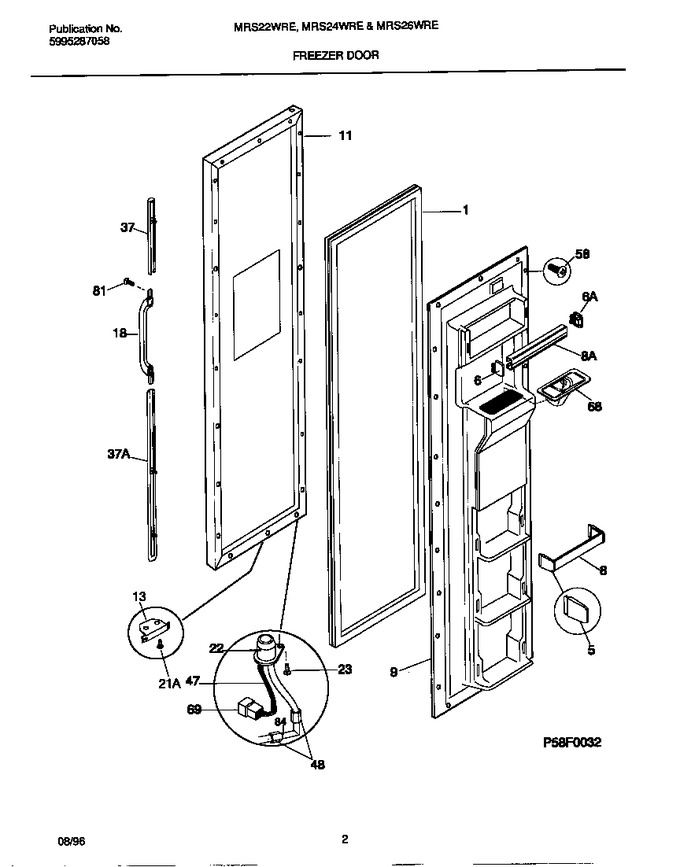

02 - Freezer Door


04 - Refrigerator Door


06 - Cabinet


07 - Shelves


08 - Controls


09 - System


10 - Ice & Water Dispenser


11 - Container/drive


12 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734303		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
6	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
6	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
8	215806322		Rack-door		Appelez-nous	-
8	218027059		Rack-door, (3)				$ 49.25
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917870		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218668403		Handle-door, Black		Appelez-nous	-
18	218668402		Handle-door, Almond		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215867086		Trim-handle, Black, Lower, With Snap Locks Optional		Appelez-nous	-
37	215867087		Trim-handle, Black, Upper, With Snap Lock Optional		Appelez-nous	-
37	215867084		Trim-handle, Almond, Lower, With Snap Locks				$ 90.04
37	215867085		Trim-handle, Almond, Upper, With Snap Lock		Appelez-nous	-
47	218485100		Harness-wiring, Frzr Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
68	218020600		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
84	5308010289		Elbow-water Tube				$ 45.84
*27760	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*27761	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
