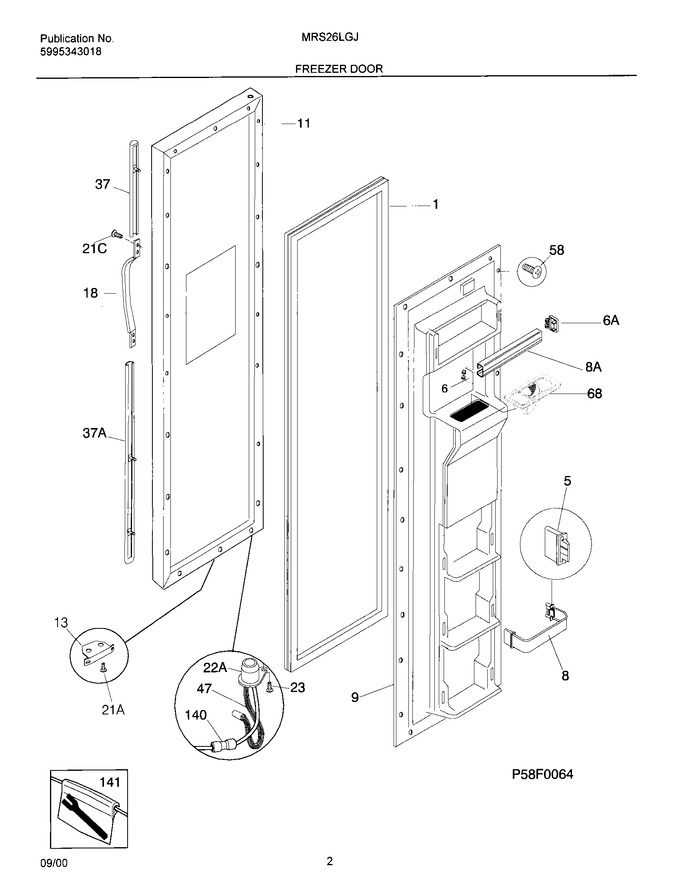

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734323		Gasket-frzr Door, Black, Magnetic				$ 215.25
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
8	218807028		Rack-door,w/end Caps		Appelez-nous	-
9	218510401		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918164		Panel-ext Frzr Door,black ,w/foam Insulatn				$ 254.57
13	5303289522		Door Stop				$ 40.17
18	218762703		Handle-door,black				$ 67.04
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	218811620		Trim-handle,black ,upper		Appelez-nous	-
47	218922901		Harness-wiring,frzr Door		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
68	218495200		Chute-ice		Appelez-nous	-
140	218922801		Elbow-water Tube				$ 55.28
141	218929601		Tool-push Connector		Appelez-nous	-
	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22A	215615300		Bushing-door,bronze		Appelez-nous	-
37A	5304471621		Trim-handle,black ,lower   (Replaces: 218811617)				$ 97.83
37A	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37A	215782300		Lock-handle Trim, Snap-on				$ 34.49
6A	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
8A	215474052		Rack-door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
