Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 215734304 Gasket-refr Door, Almond, Magnetic Appelez-nous -
3 215403201 Panel-inner Door, Refr Appelez-nous -
7 215029911 Door, Dairy Appelez-nous -
12 215503711 Frame-nameplate, Almond, W/mtg Tape Appelez-nous -
13 5303289522 Door Stop Special Order $ 40.17

15 218066411 Panel-refr Door, Almond, W/ Foam Insulatn Appelez-nous -
18 215339611 Handle-door, Almond Appelez-nous -
22 5303289320 Bearing-hinge Special Order $ 19.69

26 3204522 Container-egg Special Order $ 98.33

37 215361411 Trim, Handle, Almond Appelez-nous -
49 215717304 Bin-door Appelez-nous -
58 5308002748 Screw Appelez-nous -
*11052 5303917276 Insulation-door, Fiberglass, (bulk) Special Order $ 330.91

*11052 215361200 Foam Strip, Handle Mtg Hole Appelez-nous -
21A 215218600 Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 Appelez-nous -
21D 215659600 Screw-handle Mtg,hex Head, 10-32 X 1/2 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

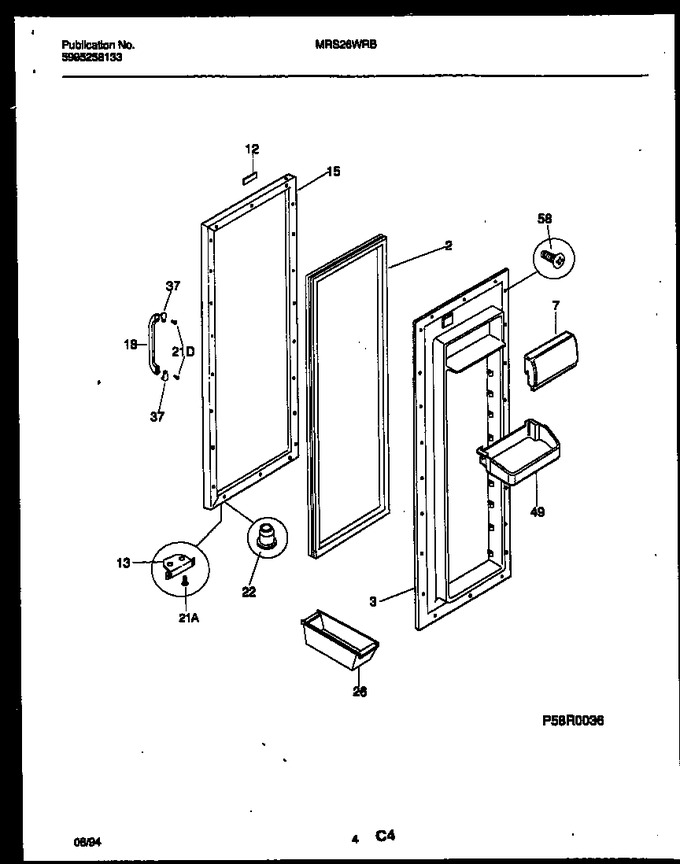

Diagram for MRS26WRBD0
