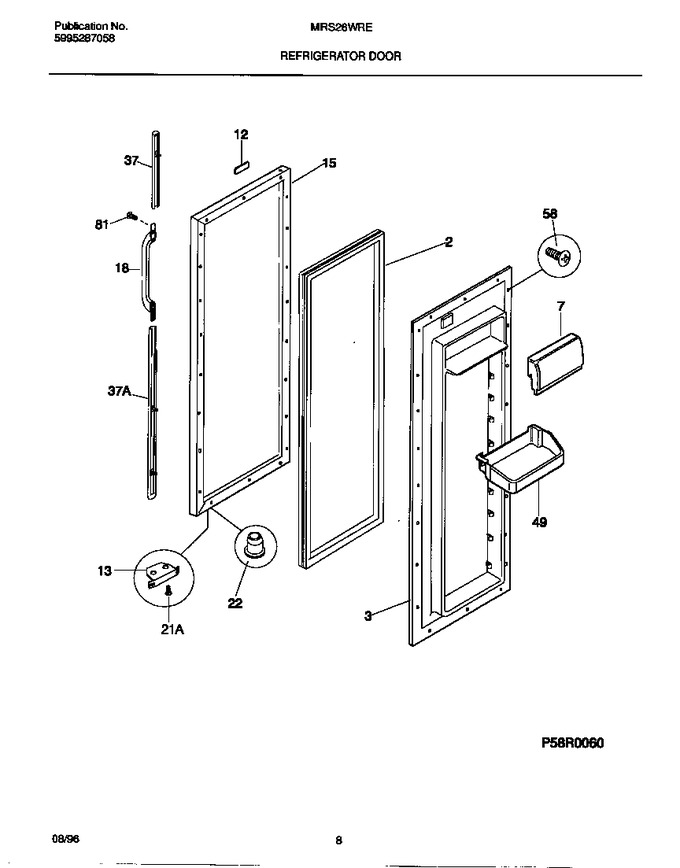

05 - Refrigerator Door


06 - Cabinet


07 - Shelves


08 - Controls


09 - System


10 - Ice & Water Dispenser


11 - Container/drive


12 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734304		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	215029914		Door-dairy		Appelez-nous	-
12	218428205		Frame-nameplate, Almond		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917876		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
18	218668403		Handle-door, Black Optional		Appelez-nous	-
18	218668402		Handle-door, Almond		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	215867084		Trim-handle, Almond, Lower, With Snap Locks				$ 90.04
37	215867085		Trim-handle, Almond, Upper, With Snap Lock		Appelez-nous	-
37	215867086		Trim-handle, Black, Lower, With Snap Locks Optional		Appelez-nous	-
37	215867087		Trim-handle, Black, Upper, With Snap Lock Optional		Appelez-nous	-
49	215717306		Bin-door, (4)		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*27764	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
