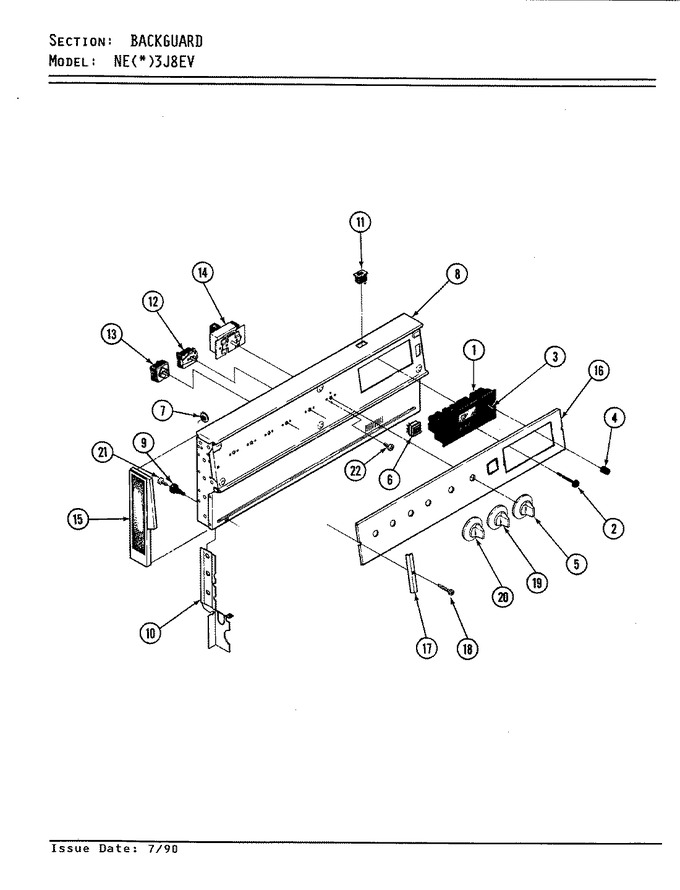

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P128-60 | Clock | 1 |
|
- | ||||
| 2 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 3 | 8312P019-60 | Shaft, Bit Generator | 1 |
|
- | ||||
| 4 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 5 | 7711P319-60 | Knob, Thermostat | 1 |
|
- | ||||
| 6 | 7407P067-60 | Light, Signal | 1 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 8 | 2601W263-81 | Backguard Assy, White | 1 |
|
- | ||||
| 8 | 2601W263-84 | Backguard Assy, Almond | 1 |
|
- | ||||
| 8 | 4005F284-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 9 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 10 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 10 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 10 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 11 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 12 | 7403P081-60 | Switch, Selector | 1 |
|
- | ||||
| 12 | 7101P280-60 | Screw W/washer (blk) | 1 |
|
- | ||||
| 13 | 7403P183-60 | Switch, Inf. 250v | 1 |
|
- | ||||
| 13 | 7101P280-60 | Screw W/washer (blk) | 1 |
|
- | ||||
| 14 | 7404P052-60 | Thermostat | 1 |
|
- | ||||
| 15 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 15 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 16 | 7703P133-60 | Trim, Bckd | 1 |
|
- | ||||
| 17 | 7720P088-60 | Trim, Glass Ret | 1 |
|
- | ||||
| 18 | 7101P008-60 | Screw | 1 |
|
- | ||||
| 19 | 7711P320-60 | Knob | 1 |
|
- | ||||
| 20 | 7711P321-60 | Knob, Switch | 1 |
|
- | ||||
| 21 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 22 | 7101P279-60 | Screw W/washer | 1 |
|
- |
