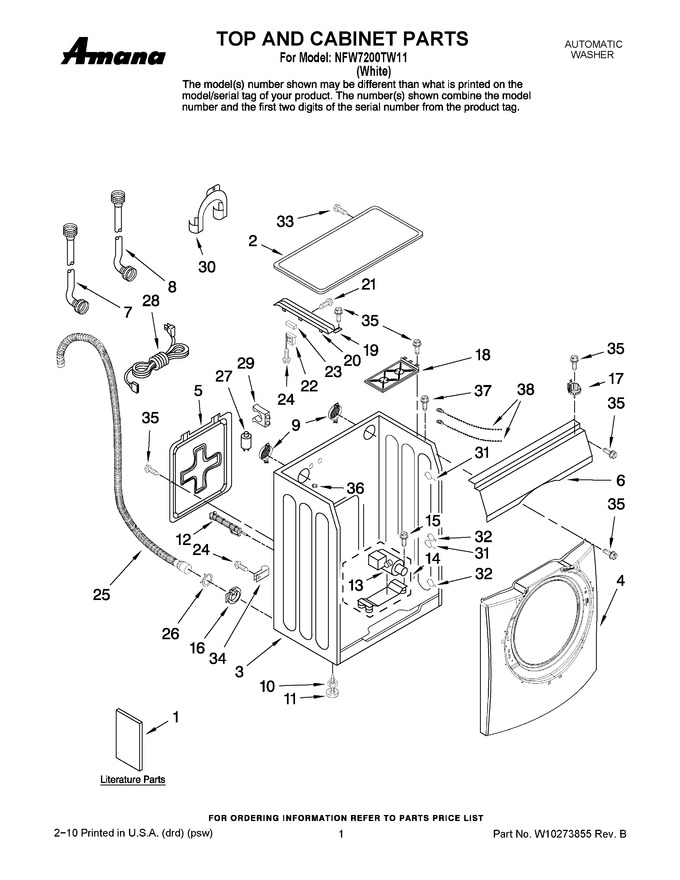

01 - Top And Cabinet Parts
02 - Console And Dispenser Parts
03 - Tub And Basket Parts
04 - Door And Latch Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10161022 | Use & Care Guide |
|
- | |||||
| 1 | W10162408 | Tech Sheet |
|
- | |||||
| 1 | W10161756 | Installation Instructions |
|
- | |||||
| 1 | W10174717 | Energy Guide |
|
- | |||||
| 2 | 34001332 | Top |
|
- | |||||
| 3 | 34001442 | Cabinet |
|
- | |||||
| 4 | 34001427 | Panel, Front |
|
- | |||||
| 5 | 34001338 | Rear Panel |
|
- | |||||
| 6 | 34001441 | Frame, Upper Front |
|
- | |||||
| 7 | 34001089 | Hose, Water Inlet (hot) |
|
$ 41.43 | |||||
| 8 | 34001094 | Hose, Water Inlet (cold) |
|
$ 110.34 | |||||
| 9 | 34001400 | Cap, Ventilation Assembly |
|
- | |||||
| 10 | 34001389 | Nut, Lock (4) |
|
$ 5.70 | |||||
| 11 | 34001341 | Foot, Leveling (4) |
|
$ 11.96 | |||||
| 12 | 34001337 | Bolt, Shipping (4) |
|
- | |||||
| 13 | WP34001340 | Pump, Drain (Replaces: 34001340) |
|
Immediately | $ 127.40 | ||||
| 14 | WPW10175948 | Pump, Drain- Complete Assembly (Replaces: W10175948) |
|
Immediately | $ 292.26 | ||||
| 15 | 34001388 | Bolt |
|
$ 23.87 | |||||
| 16 | 34001200 | Guide, Drain Hose |
|
- | |||||
| 17 | 34001324 | Switch, Pressure Sensor |
|
$ 77.95 | |||||
| 18 | 34001443 | Absorber Assembly |
|
- | |||||
| 19 | 34001326 | Channel, Harness |
|
- | |||||
| 20 | 34001325 | Bracket, Harness Channel |
|
- | |||||
| 21 | WP98008545 | Screw (Replaces: 34001232) |
|
$ 15.94 | |||||
| 22 | 34001333 | Trans-reactor |
|
$ 80.78 | |||||
| 23 | 34001334 | Bracket-heater |
|
- | |||||
| 24 | 34001231 | Screw |
|
$ 4.83 | |||||
| 25 | 34001095 | Hose, Drain |
|
$ 83.92 | |||||
| 26 | WP596669 | Clamp, Hose (Replaces: 34001161) |
|
Immediately | $ 7.56 | ||||
| 27 | 555555 | Filter-emi (Replaces: 34001330) |
|
$ 151.94 | |||||
| 28 | DC96-00757A | Cord, Power (Replaces: 34001204) |
|
$ 92.33 | |||||
| 29 | 34001331 | Clip, Outer Hose Holder |
|
- | |||||
| 30 | 34001336 | U-bend, Drain Hose |
|
- | |||||
| 31 | 35001004 | Clip, Harness |
|
- | |||||
| 32 | 34001329 | Clip, Harness |
|
$ 11.33 | |||||
| 33 | 34001328 | Screw (2) |
|
- | |||||
| 34 | 34001299 | Clamp, Drain Hose Retainer |
|
$ 11.33 | |||||
| 35 | 34001252 | Screw |
|
- | |||||
| 36 | 34001097 | Guide-spring - Washer Only |
|
$ 18.96 | |||||
| 37 | 34001317 | Screw-special |
|
- | |||||
| 38 | WPW10339879 | Tie, Wire (Replaces: 34001229) |
|
$ 7.11 |
