SELECT A DIAGRAM
01 - Cover
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

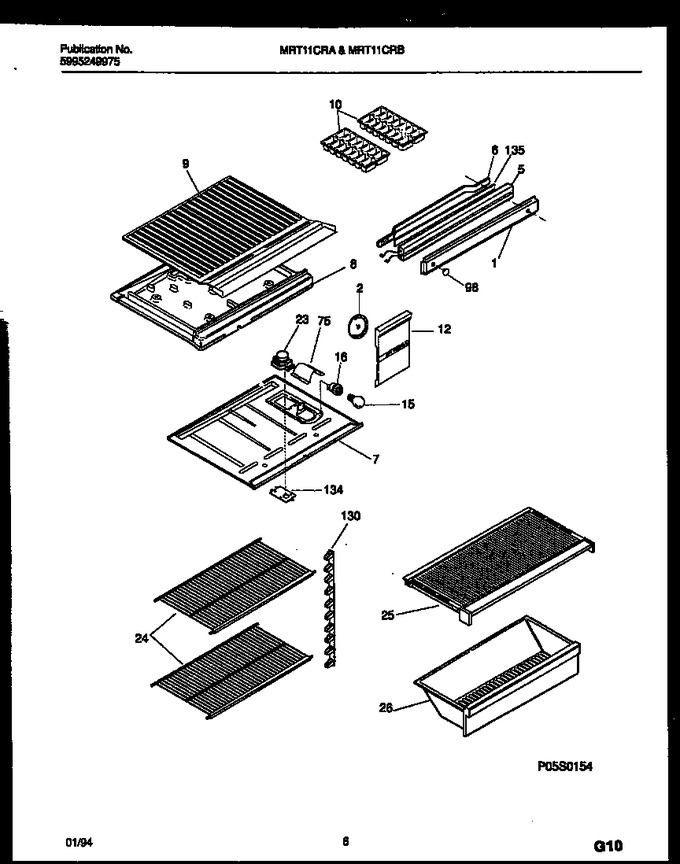

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308011213 | Mullion, Almond |
|
- | |||||
| 2 | 215787701 | Knob-damper Control |
|
- | |||||
| 5 | 215960400 | Heater-mullion |
|
- | |||||
| 6 | 5308011211 | Strap-mullion Mtg |
|
- | |||||
| 7 | 5308011195 | Top Panel-refr |
|
- | |||||
| 8 | 5308011194 | Divider, Styrofoam |
|
- | |||||
| 9 | 218026100 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic, (2) |
|
Immediately | $ 6.07 | ||||
| 12 | 215787601 | Diffuser-air |
|
- | |||||
| 15 | 215812200 | Light Bulb/lamp,25w |
|
$ 16.54 | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 215843201 | Shelf-full, Fixed, Wire, (2) |
|
- | |||||
| 25 | 5308011196 | Cover-crisper Pan |
|
- | |||||
| 26 | 215787202 | Pan-crisper |
|
- | |||||
| 75 | 5308011200 | Shield-light, Refr |
|
- | |||||
| 98 | 3001698 | Cover-screw, Almond |
|
- | |||||
| 130 | 5303301047 | Support-shelf, (4) |
|
- | |||||
| 134 | 5308011178 | Cover-defrost Timer |
|
- | |||||
| 135 | 215954900 | Insulation-mullion |
|
- | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 5303001380 | Screw |
|
- |
