Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31752 Screw,no.8abx3/4 Pozidri Appelez-nous -
2 31251 Cap/ Black Left Hand Appelez-nous -
3 59955 Assy,hood & Mounting P Appelez-nous -
4 59420 Timer,1 Cycle Appelez-nous -
5 WP90767 Screw   (Replaces: Y59616) In-Stock Immediately $ 7.04

6 31250 End Cap, Right In-Stock Immediately $ 8.99

7 61596 Panel,graphic Appelez-nous -
7 59490 Panel,graphic Appelez-nous -
8 59793 Assy,timer Knob & Skirt Appelez-nous -
NOTE: We Use Different Timer Vendors. Although The Timers Differ In Appearance, Theyare Completely Interchangeable When Identified By The Same Part Number. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

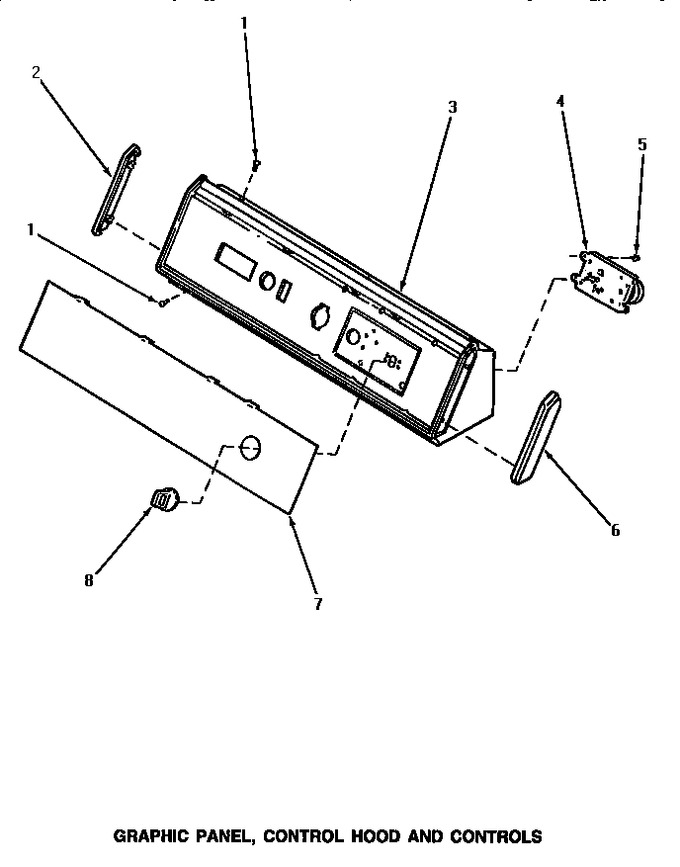

Diagram for NG2119
