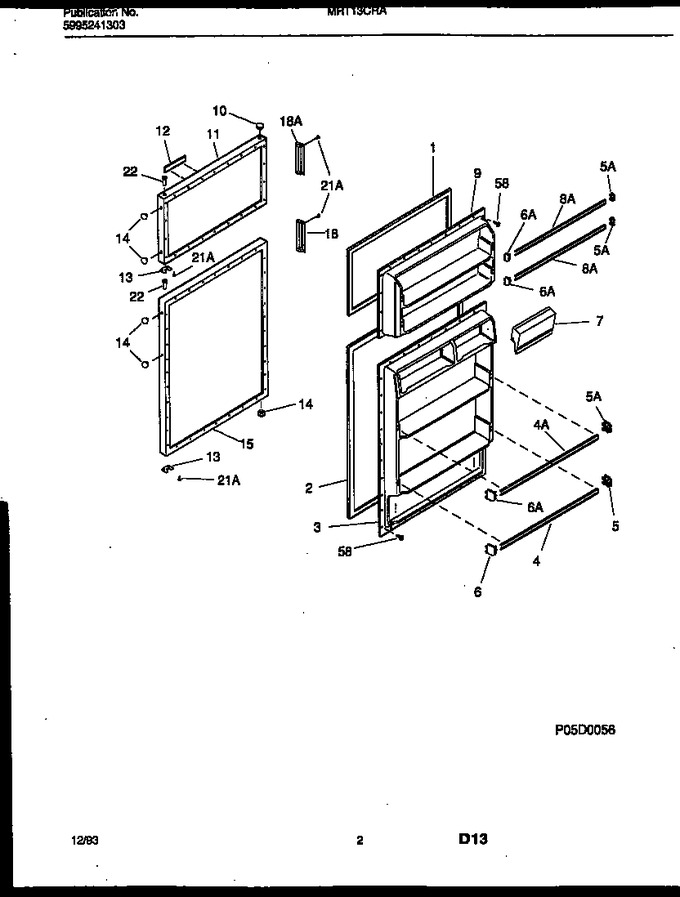

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007123 | Gasket-frzr Door, Magnetic, White |
|
$ 188.54 | |||||
| 2 | 5303271473 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 5303271483 | Panel-inner Door, Refr |
|
$ 343.77 | |||||
| 4 | 215366002 | Rack-door, Wide (Replaces: 5303280367) |
|
Immediately | $ 65.83 | ||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303276149 | Door-dairy |
|
- | |||||
| 9 | 5303271486 | Panel-inner Door, Frzr |
|
$ 312.17 | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916563 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 215503701 | Frame-nameplate, White, W/ Tape |
|
- | |||||
| 13 | 5308000255 | Door Stop-frzr |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916850 | Panel-refr Door, White, W/ Insulation |
|
- | |||||
| 18 | 5303273079 | Handle-door, White |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *90771 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340712 | Tape-double Faced, Foam, 12`` Pc, Nameplate (non-illustrated) |
|
- | |||||
| 18A | 5303273081 | Handle-door, White |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4A | 5303280366 | Rack-door, Narrow |
|
- | |||||
| 5A | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 6A | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 | ||||
| 8A | 5303280622 | Rack-door, Narrow |
|
- |
