SELECT A DIAGRAM
02 - Door
03 - Cabinet W/ Fan Assembly

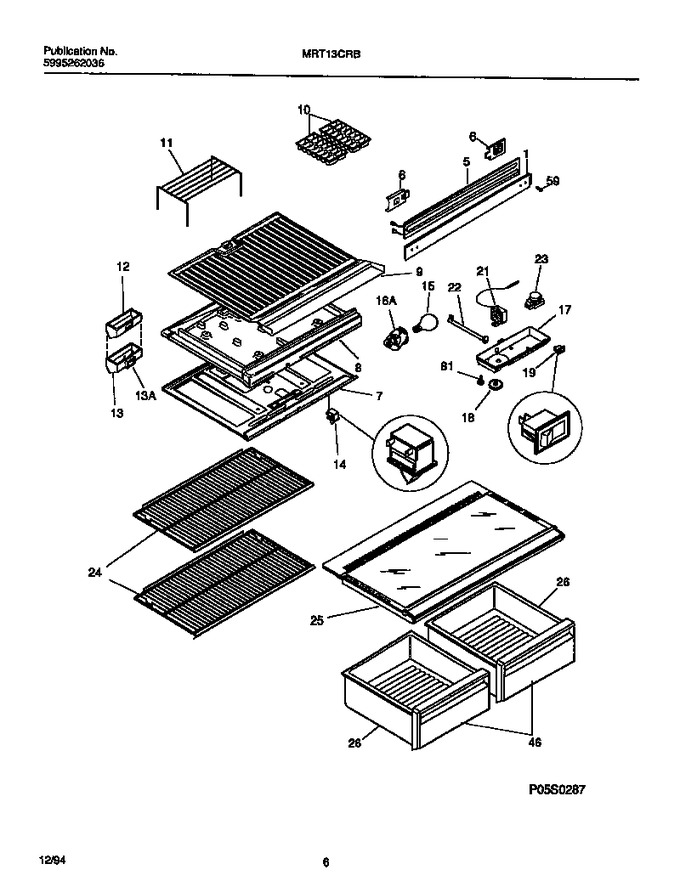

04 - Shelves, Controls, Divider, Mullion
05 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218430711 | Mullion, Almond |
|
$ 65.59 | |||||
| 5 | 218271401 | Heater-mullion |
|
$ 135.66 | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 5303270919 | Top Panel-refr |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 8 | 5303270921 | Divider, Styrofoam |
|
- | |||||
| 8 | 5303276174 | Harness, Wiring, Control/divider (not Illustrated) |
|
- | |||||
| 8 | 3205266 | Protector, Edge (not Illustrated) |
|
$ 80.09 | |||||
| 9 | 5303270920 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303282284 | Shelf-freezer, ``table Type`` (Replaces: 5303283280) |
|
Immediately | $ 88.05 | ||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 12 | 5303001449 | Seal, Air Deflector (not Illustrated) |
|
$ 2.12 | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5308016567 | Nut, Anchor (not Illustrated) |
|
- | |||||
| 17 | 5303307349 | Box, Control |
|
- | |||||
| 18 | 5303307352 | Knob, Temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker |
|
$ 27.08 | |||||
| 21 | 5303302297 | Control-temperature |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 5303270923 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303283125 | Shelf-sliding, Wire, Refr Section |
|
- | |||||
| 25 | 5303270897 | Cover-crisper Pan |
|
$ 275.73 | |||||
| 26 | 5303209937 | Pan-crisper, Full-width |
|
$ 231.16 | |||||
| 46 | 5303304705 | Front-crisper Pan, Full-width |
|
- | |||||
| 59 | 240442708 | Screw, Hinge/mulllion, 10, 32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 |
