SELECT A DIAGRAM

01 - Cabinet Top & Control Hood Rear Panel


02 - Cabinet, Exhaust Duct & Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Gas Valve, Igniter & Gas Conversion Kits

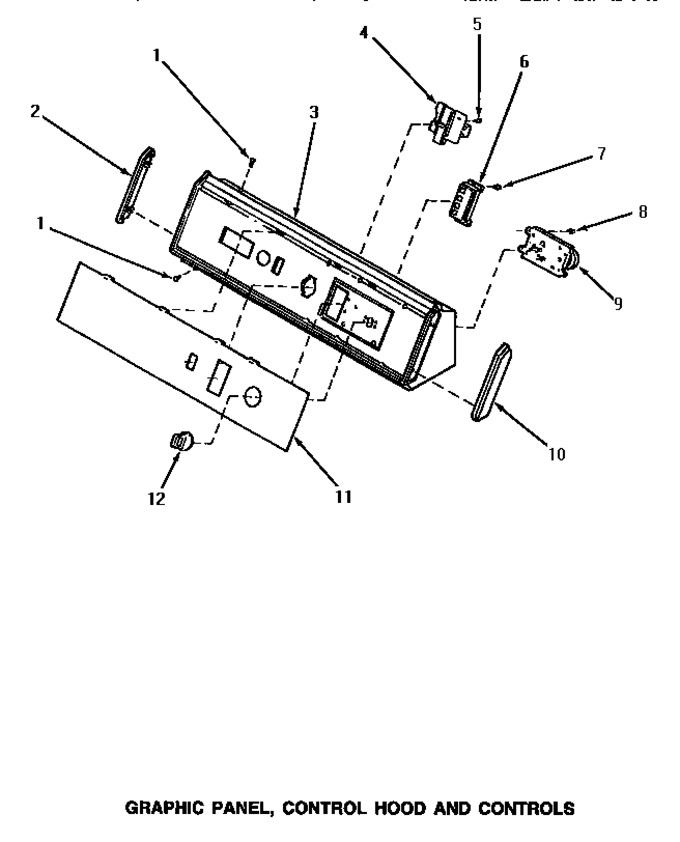

05 - Graphic Panel, Control Hood & Controls


06 - Heater Box (starting Sn S6333960xm)


07 - Heater Box (thru Sn S6333959xm)


08 - Loading Door, Front Panels & Access Door


09 - Motor, Exhaust Fan & Belt


10 - Power Cord & Terminals


11 - Rear Blkhd, Felt Seal & Cylinder Roller


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
2	31249		Cap,end-l.h.-chrome		Appelez-nous	-
3	59936		Assy,hood & Mounting P		Appelez-nous	-
4	59498		Signal,slide-blk/org		Appelez-nous	-
5	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
6	59617		Xassy,switch & Cover-sq		Appelez-nous	-
7	WP489464		Screw   (Replaces: Y33561)			Immediately	$ 7.05
8	WP90767		Screw   (Replaces: Y59616)			Immediately	$ 7.04
9	59421		Timer, 5 Cycle		Appelez-nous	-
10	31248		Cap,end-r.h.-chrome		Appelez-nous	-
11	59481		Panel,graphic		Appelez-nous	-
12	59791		Assy,timer Knob & Skir				$ 19.70
	NOTE:		We Use Different Timer Vendors. Although The Timers Differ In Appearance, Theyare Completely Interchangeable When Identified By The Same Part Number.		Appelez-nous	-
