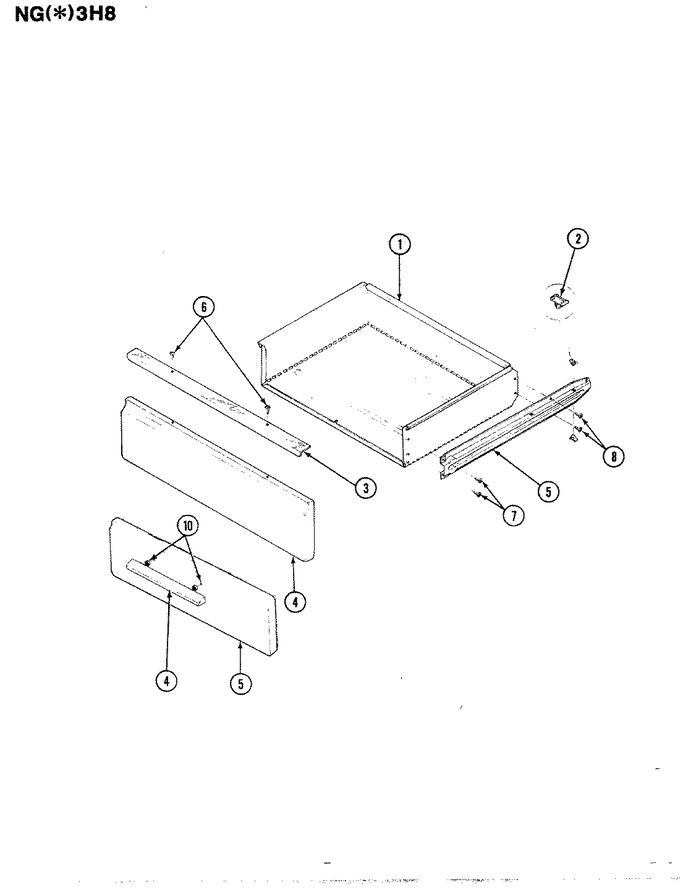

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3405F008-20 | Drawer Assy. | 1 |
|
- | ||||
| 2 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 3 | 7701P014-74 | Handle, Drawer Almond | 1 |
|
- | ||||
| 4 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 5 | 2416F017-74 | Panel, Storage Drawer Alm | 1 |
|
- | ||||
| 6 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 7 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 8 | 7101P225-60 | Screw, Svc Door | 1 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 10 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1-24 |
|
Immediately | $ 7.69 | |||
| 10 | 8010P002-60 | Spacer, Handle | 1-24 |
|
- | ||||
| 10 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 25 |
|
$ 5.82 |
