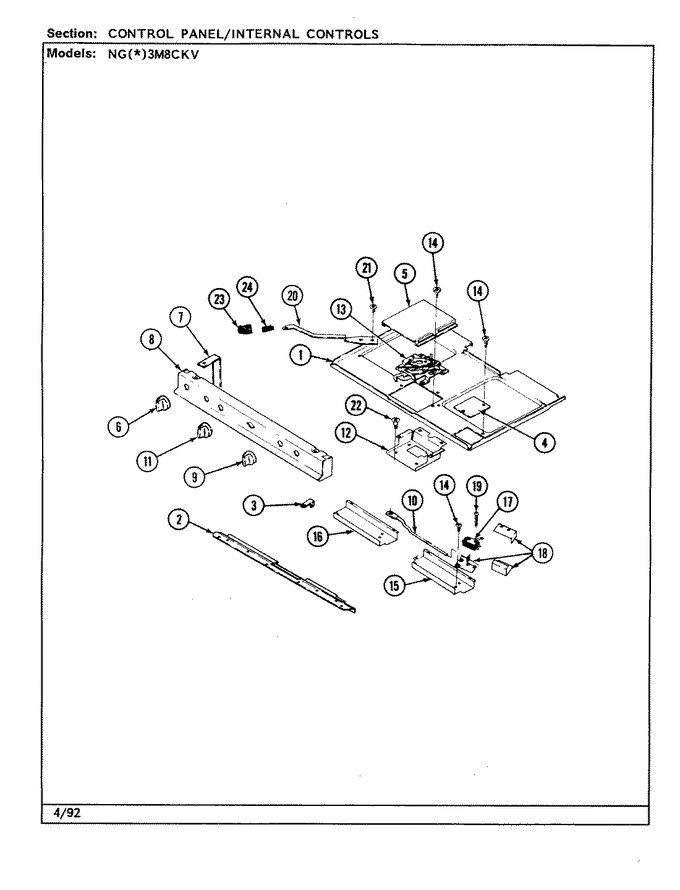

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4011F200-80		Bottom Burner Box		Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
2	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
2	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)				$ 15.94
2	4012F020-80		Front, Burn Box Bott		Appelez-nous	-
3	3801F049-34		Bracket,control Panel (l)		Appelez-nous	-
3	3801F047-34		Bracket,control Panel (r)		Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
4	4005F139-51		Cover, Switch		Appelez-nous	-
5	4005F137-80		Cover, Catch Assy.		Appelez-nous	-
6	7711P381-60		Knob, Selector		Appelez-nous	-
7	3807F431-45		Support, Main Top		Appelez-nous	-
8	WP4159193		Screw   (Replaces: 7118P004-60)				$ 4.29
8	7712P156-60		Control Panel		Appelez-nous	-
9	WP7711P135-60		Knob, Valve (blk)   (Replaces: 7733P027-60)				$ 25.06
10	7807P012-60		Link, Door Lock		Appelez-nous	-
11	7731P020-60		Knob, Thermostat		Appelez-nous	-
12	3807F408-45		Support, Catch Assy.		Appelez-nous	-
13	3604F159-45		Shield Insulation, Catch		Appelez-nous	-
13	8002P021-60		Catch, Door Lock		Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
15	3818F027-45		Channel, Switch		Appelez-nous	-
16	3818F049-45		Channel, Air		Appelez-nous	-
17	7003P039-60		Insulation, Switch		Appelez-nous	-
17	7403P077-60		Switch----na		Appelez-nous	-
17	7003P019-60		Insulation, Switch (upper)		Appelez-nous	-
18	3807F422-45		Support, Door Lock Switch		Appelez-nous	-
19	7101P031-60		Screw		Appelez-nous	-
20	8009P019-60		Lever, Door Lock		Appelez-nous	-
21	WP4159193		Screw   (Replaces: 7101P018-60)				$ 4.29
22	7116P003-60		Bolt		Appelez-nous	-
23	7701P088-60		Handle, Latch (blk)		Appelez-nous	-
24	7112P003-60		Clip, Latch Handle		Appelez-nous	-
