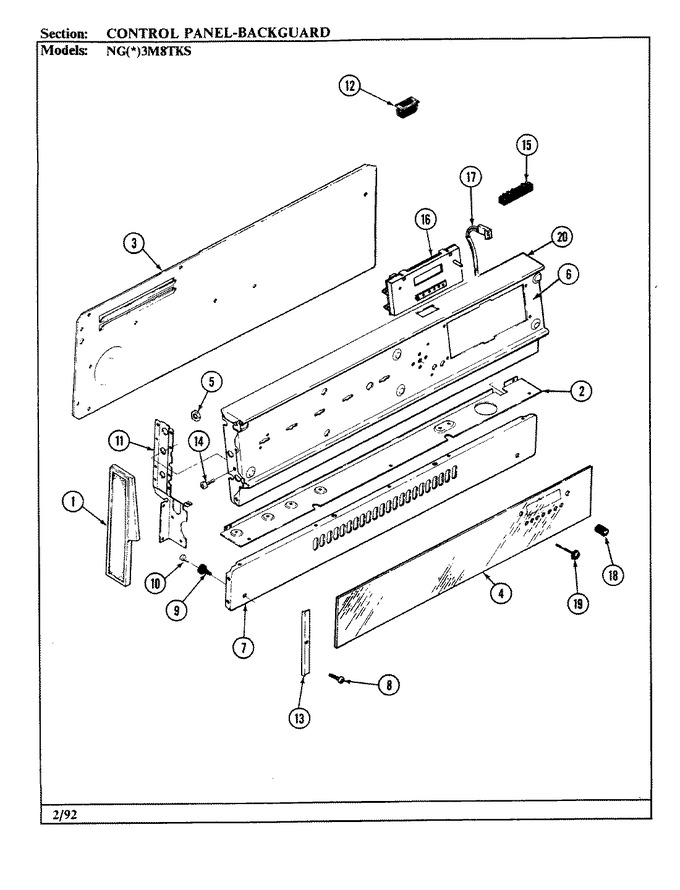

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7726P031-60		Trim, Bkgd End (lt)	1	Appelez-nous	-
1	7726P032-60		Trim, Bkgd End (rt)	1	Appelez-nous	-
2	4005F155-80		Cover, Bottom Bkdg Wire	1	Appelez-nous	-
3	4005F393-80		Cover Bkgd Wire	1	Appelez-nous	-
3	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	1			$ 6.98
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
4	7910P150-60		Glass, Backguard	1	Appelez-nous	-
5	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
6	2601W328-84		Panel, Control (almond)	1	Appelez-nous	-
6	2601W328-81		Panel, Control (white)	1	Appelez-nous	-
7	2620W053-09		Panel Bkgd Lower	1	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
8	7101P008-60		Screw	1	Appelez-nous	-
9	7105P002-60		Support, Main Top	1	Appelez-nous	-
10	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
11	3807F349-51		Support, Bkgd End Rt	1	Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
11	3807F348-51		Support, Bkgd End Lf	1	Appelez-nous	-
11	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
12	7403P067-60		Switch, Rocker (blk)	1			$ 91.35
13	7742P009-60		Trim, Retainer Glass	1	Appelez-nous	-
14	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
15	7401P015-60		Block, Terminal	1	Appelez-nous	-
16	7601P181-60		Clock, Electronic	1	Appelez-nous	-
17	5170P100-60		Harness, Oven Sensor	1	Appelez-nous	-
18	WP7711P492-60		Knob, Clock (wht)   (Replaces: 7711P432-60)	1			$ 12.13
18	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	1			$ 12.13
19	7711P452-60		Button, Clock Set	1	Appelez-nous	-
19	7711P453-60		Button, Ctrl Set	1	Appelez-nous	-
20	5180D129-60		Harness Upper	1	Appelez-nous	-
20	7715P030-60		Trim, Bkgd Top	1	Appelez-nous	-
