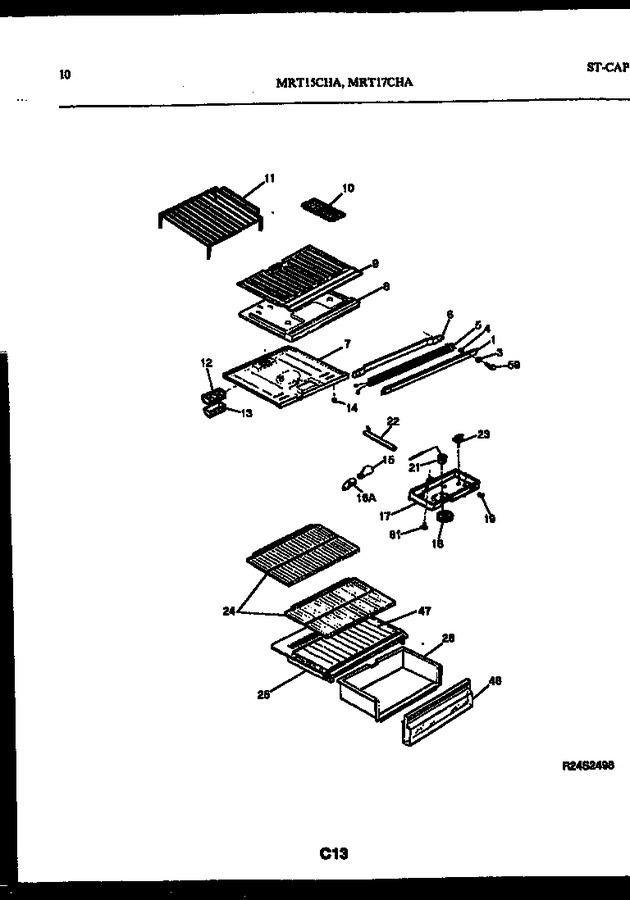

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	5303283106		Shelf-sliding, Refr, (2)		Appelez-nous	-
24	5303283111		Shelf-sliding, Refr, (2)				$ 27.20
25	3206183		Cover-crisper Pan, With Beam, Less Insert		Appelez-nous	-
25	5303276242		Cover-crisper Pan, Complete		Appelez-nous	-
26	5303272527		Pan-crisper, Full-width		Appelez-nous	-
26	5303285386		Pan-crisper, Full-width, W/ Front				$ 170.39
46	5303209521		Front-crisper Pan, Full		Appelez-nous	-
47	3206182		Insert-crisper Cvr		Appelez-nous	-
59	3206134		Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
