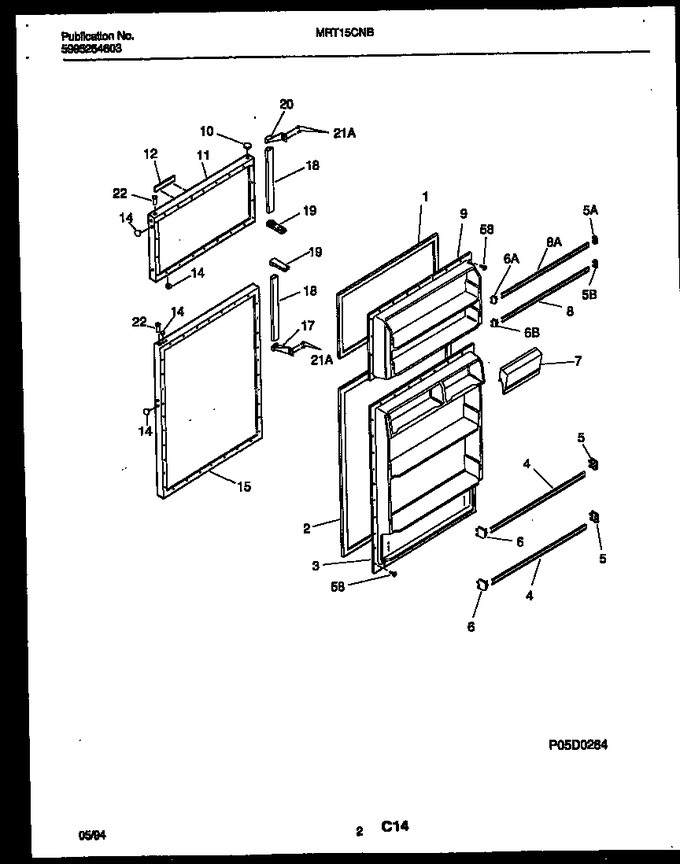

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	5303281227		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door, 23.00`` X 1.62``   (Replaces: 5303280367)			Immediately	$ 65.83
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	5303291495		Door-dairy		Appelez-nous	-
8	5303280621		Rack-door, 22.62`` X 1.62``		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917179		Panel-frzr Door, Almond		Appelez-nous	-
12	215503711		Frame-nameplate, Almond, W/mtg Tape		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917182		Panel-refr Door, Almond		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302991		Handle Door, Almond		Appelez-nous	-
19	5303001296		Handle End, (2)				$ 86.36
20	5303001014		Handle End		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*10229	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	5308011745		Screw				$ 10.38
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
8A	5303280622		Rack-door, 22.59`` X 1.12``		Appelez-nous	-
