SELECT A DIAGRAM

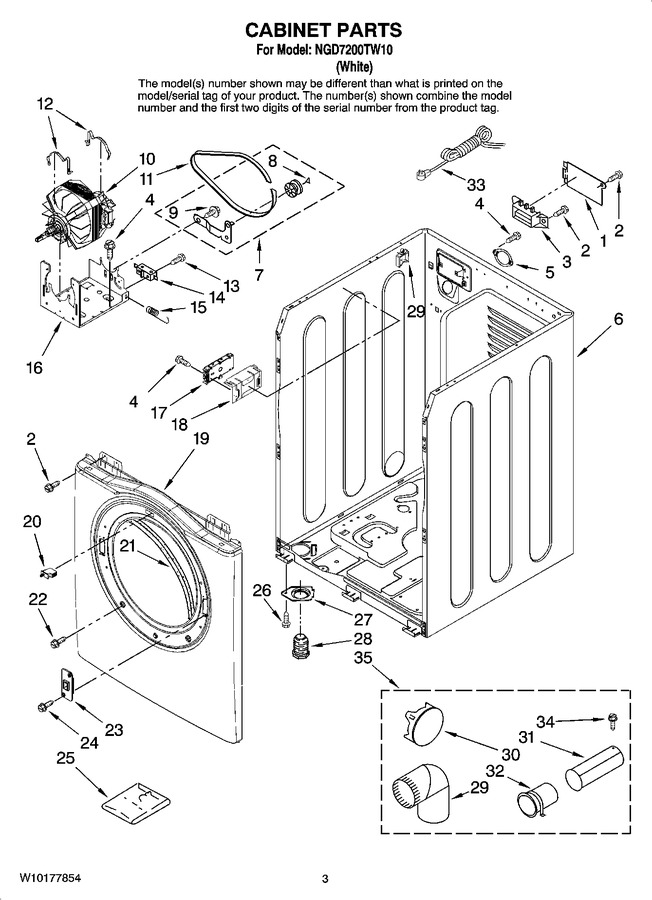

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DC97-08855A		Cover, Terminal Block   (Replaces: 35001157)				$ 40.98
2	6006-001174		Screw-tapping				$ 0.85
3	279320		Terminal Block   (Replaces: 34001481)			Immediately	$ 61.43
4	555555		Screw-tapping   (Replaces: 6002-000231)				$ 151.94
5	DC61-01428A		Strain-relief Power Cord   (Replaces: 35001167)				$ 1.66
6	35001170		Cabinet		Appelez-nous	-
7	35001276		Bracket-idler Assembly		Appelez-nous	-
8	35001084		Tri-ring				$ 5.84
9	6009-001342		Retainer, Idler				$ 2.50
10	35001180		Motor Assembly 60 Hz.		Appelez-nous	-
11	WPW10205415		Belt-drive   (Replaces: 35001137)			Immediately	$ 92.66
12	35001081		Clamp, Motor (2)				$ 10.14
13	35001107		Screw-tapping (1)		Appelez-nous	-
14	35001082		Switch, Broken Belt				$ 10.45
15	35001278		Spring, Idler				$ 26.16
16	35001106		Bracket-motor		Appelez-nous	-
17	35001153		Board, Control				$ 285.15
18	DC61-01229A		Bracket, Control Board   (Replaces: 35001168)				$ 33.30
19	W10177396		Panel, Front		Appelez-nous	-
20	35001125		Door-switch				$ 29.27
21	W10177398		Seal-front Panel				$ 33.69
22	6002-001006		Screw-tapping (4)				$ 0.85
23	35001112		Catch, Door Assembly				$ 39.83
24	6002-000213		Screw-tapping (2)			Immediately	$ 0.93
25	35001255		Kit Stack Assembly		Appelez-nous	-
26	6002-000213		Screw-tapping			Immediately	$ 0.93
27	35001156		Bracket, Dryer Foot		Appelez-nous	-
28	34001158		Foot-dryer				$ 49.95
29	Y059131		Elbow-4``		Appelez-nous	-
30	35001216		Vent-cap		Appelez-nous	-
31	35001204		Duct, Exhaust (a)		Appelez-nous	-
32	35001205		Duct, Exhaust (b)		Appelez-nous	-
33	35001200		Power-cord		Appelez-nous	-
34	WPW10346892		Screw-tapping   (Replaces: 213121)			Immediately	$ 6.47
35	12002641		Dryer Exhaust Kit (for Side & Bottom Venting) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
