01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

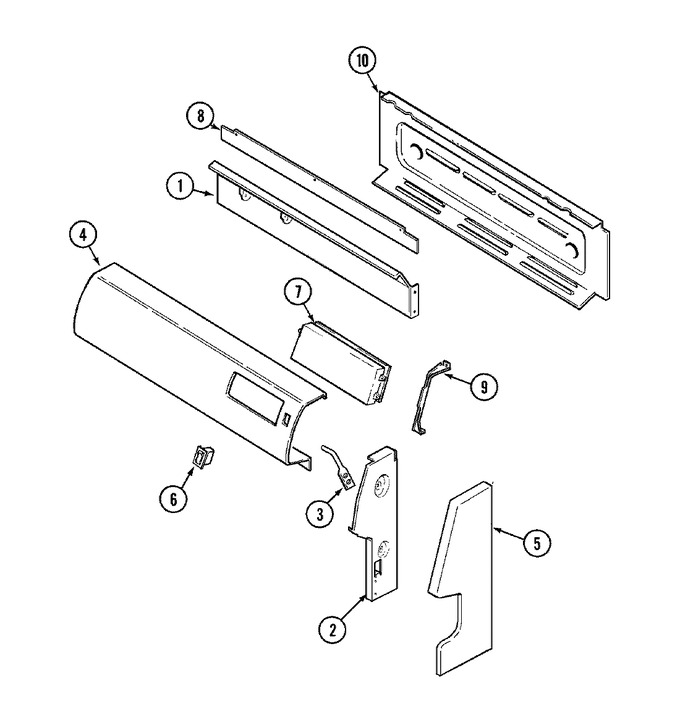

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003488 | Shield, Vent Deflector | 10 |
|
- | ||||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 2 | 74003490 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 2 | 74003489 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 3 | 74003371 | Hinge, Main Top (rod) | 10 |
|
- | ||||
| 4 | 74003532 | Panel, Control (wht) | 10 |
|
- | ||||
| 4 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 5 | 74003370 | End Cap, Control Pnl (lt-wht) | 10 |
|
$ 33.65 | ||||
| 5 | 74002451 | Screw (1 3/16``-wht) | 10 |
|
- | ||||
| 5 | 74003369 | End Cap, Control Pnl (rt-wht) | 10 |
|
$ 31.74 | ||||
| 6 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 72.68 | ||||
| 7 | 74003533 | Clock (wht) | 10 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 8 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 9 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 9 | 74003362 | Bracket, Clock | 10 |
|
- | ||||
| 10 | 74003493 | Housing, Control Panel | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74003494 | Harness, Sensor/lock | 10 |
|
- | ||||
| 11 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 12 | 74003495 | Manual, Use & Care | 10 |
|
- | ||||
| 13 | 16002081 | Guide, Quick Ref - Norge | 10 |
|
- |
