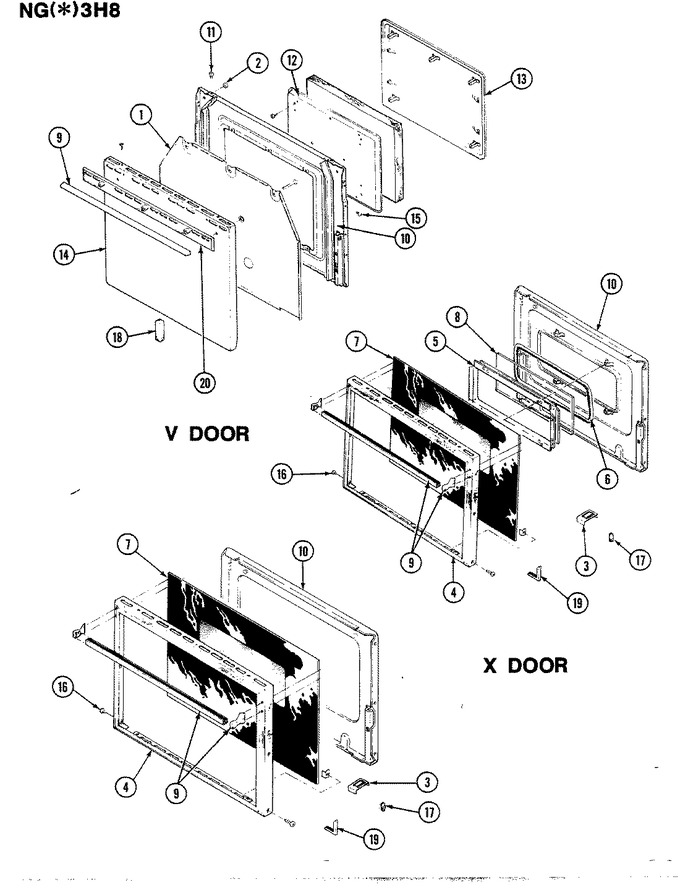

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8003P002-60		Bumper Door (round)	1	Appelez-nous	-
3	7112P034-60		Clip, Door	1	Appelez-nous	-
3	7112P051-60		Clip, Retainer	1	Appelez-nous	-
4	7706P243-60		Frame, Door	19	Appelez-nous	-
4	7706P178-60		Frame, Door	5-10	Appelez-nous	-
4	7706P222-60		Frame, Oven Door	11-18	Appelez-nous	-
5	7706P177-60		Frame, Window	1	Appelez-nous	-
6	7902P097-60		Glass, Inner	1			$ 63.87
6	7201P018-60		Gasket, Window	1	Appelez-nous	-
7	7902P276-60		Glass, Door	1	Appelez-nous	-
8	7902P101-60		Glass, Window Outer	1	Appelez-nous	-
8	7902P103-60		Glass, Window	1	Appelez-nous	-
9	7728P012-60		Insert, Oven Door Handle	1	Appelez-nous	-
9	7701P047-60		Handle, Door	1	Appelez-nous	-
10	2402W128-15		Lining	14	Appelez-nous	-
10	2402W125-12		Lining Assy, Ov Dr	1-13	Appelez-nous	-
11	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	19			$ 9.89
11	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	18			$ 9.89
12	2410F016-51		Pad, Inner	1	Appelez-nous	-
13	2410W029-15		Pad, Door	1	Appelez-nous	-
14	3804F022-45		Retainer	1	Appelez-nous	-
14	3804F051-60		Retainer, Glass	1	Appelez-nous	-
15	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	1			$ 4.29
16	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	1		Immediately	$ 6.85
17	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
18	7208P002-60		Seal	1	Appelez-nous	-
19	8010P045-60		Spacer, Glass Corner	1	Appelez-nous	-
19	8270P051-60		Tape, 2`` X 16`` Reflective	16	Appelez-nous	-
20	7720P063-60		Trim, Handle	1	Appelez-nous	-
