SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Top Assembly
New Model Search:

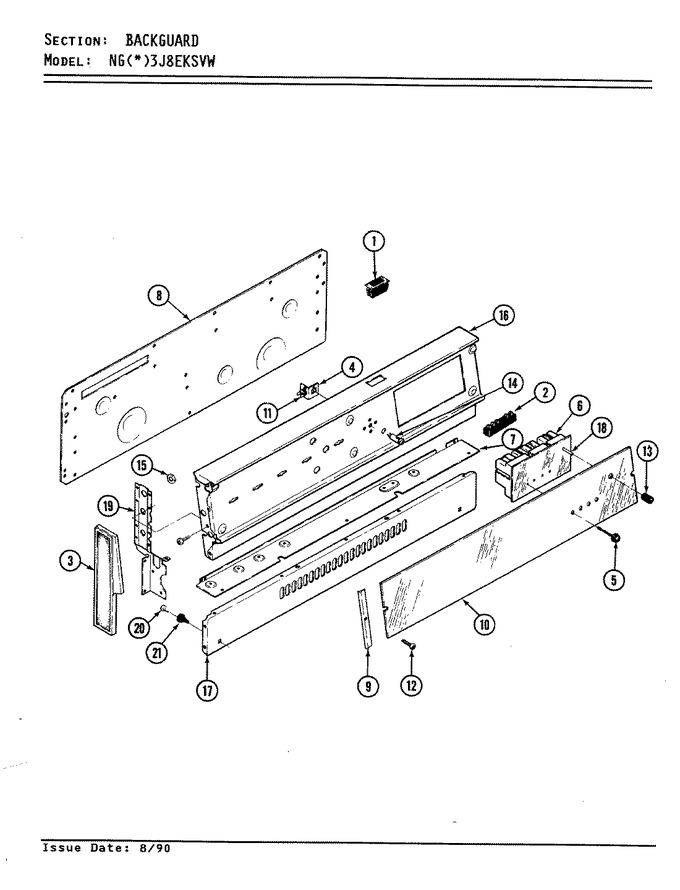

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 2 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 3 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 3 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 4 | 3801F213-45 | Bracket | 1 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 5 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 6 | 7601P125-60 | Clock | 1 |
|
- | ||||
| 7 | 4005F155-80 | Cover, Bottom Bkdg Wire | 1 |
|
- | ||||
| 8 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 8 | 4005F194-80 | Cover, Backguard | 1 |
|
- | ||||
| 9 | 7720P088-60 | Trim, Glass Ret | 1 |
|
- | ||||
| 10 | 7902P146-60 | Glass, Bkgd | 1 |
|
- | ||||
| 11 | 7403P188-60 | Switch | 1 |
|
- | ||||
| 12 | 7101P008-60 | Screw | 1 |
|
- | ||||
| 13 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 14 | 7407P013-60 | Light, Indicator | 1 |
|
- | ||||
| 15 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 16 | 2601W199-81 | Panel, Backguard White | 1 |
|
- | ||||
| 17 | 2620W053-90 | Backguard Panel | 1 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 18 | 8312P017-60 | Shaft, Clock | 1 |
|
- | ||||
| 19 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 19 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 19 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 19 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 20 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 21 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 |
