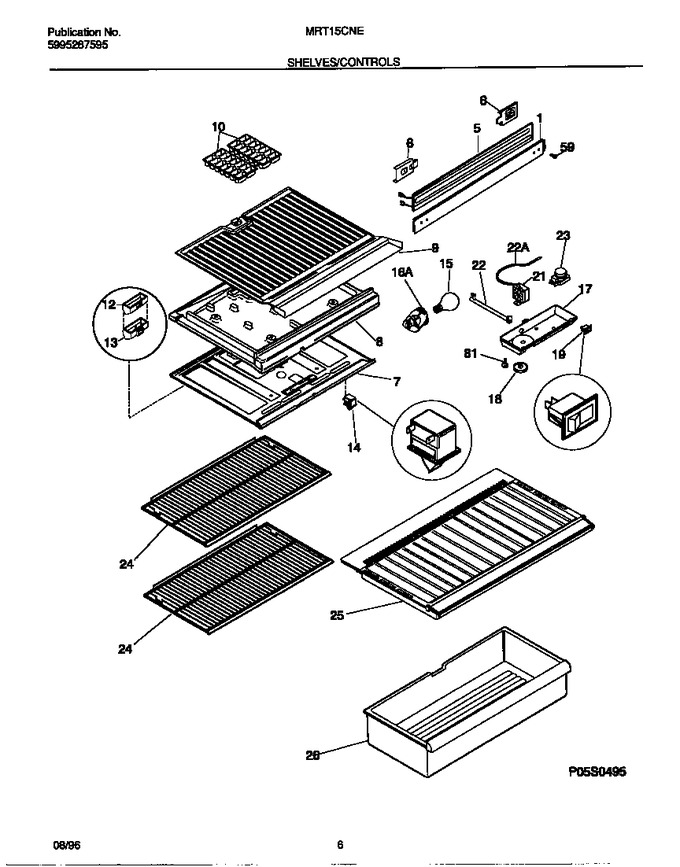

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430711		Mullion, Almond				$ 65.59
5	218271401		Heater-mullion				$ 135.66
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	3206187		Bottom Panel - Frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	5303916855		Tube, Insulator, Plastic, On Temp Sensor				$ 60.96
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
24	218272502		Shelf, Sliding, Wire				$ 621.92
25	218227301		Cover-crisper Pan, Less Sprt Beam		Appelez-nous	-
26	5303285386		Pan-crisper, Full-width				$ 170.39
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
12A	218630800		Deflector-air		Appelez-nous	-
12B	5303001449		Seal-air Deflector, (2) (not Illustrated)				$ 2.12
17A	5303307349		Control Box		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303305486		Control-temperature				$ 122.43
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	218597400		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	218635800		Divider, Styrofoam		Appelez-nous	-
8B	3018900		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
