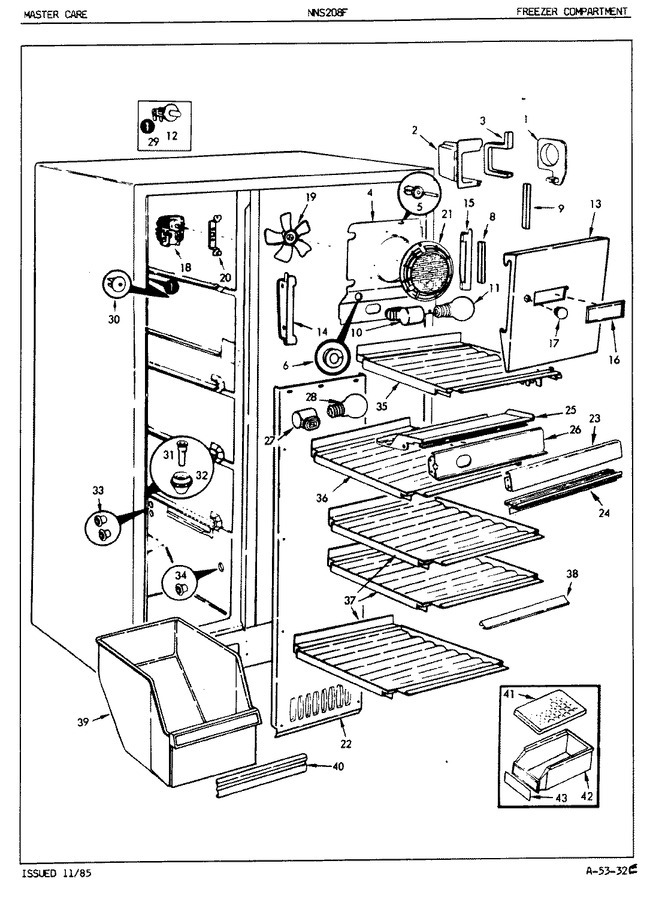

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54423-1 | Orifice |
|
- | |||||
| 2 | 53837-1 | Shield |
|
- | |||||
| 3 | 52077-10 | Seal |
|
- | |||||
| 4 | 62690-33 | Cover, Coil |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 5 | 59920-1 | Stud, Mounting Coil Cover |
|
- | |||||
| 6 | 53933-1 | Plug |
|
- | |||||
| 8 | 52077-19 | Seal,upper Coil Cover To Liner |
|
- | |||||
| 9 | 52824-6 | Coil Seal |
|
- | |||||
| 10 | 29814-2 | Receptacle, Light |
|
- | |||||
| 11 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 12 | 56432-2 | Switch |
|
- | |||||
| 13 | 65654-1 | Shield, Light |
|
- | |||||
| 14 | 53687-2 | Support |
|
- | |||||
| 15 | 54424-2 | Support |
|
- | |||||
| 16 | 65706-1 | Insert |
|
$ 26.72 | |||||
| 17 | 495032-900 | Plug |
|
- | |||||
| 18 | 56488-3 | Motor, Fan Freezer |
|
- | |||||
| 19 | 52120-1 | Blade, Fan Frzr. |
|
- | |||||
| 20 | 64856-2 | Bracket, Fan Motor |
|
- | |||||
| 21 | WP67006908 | Screw (Replaces: 400022-1) |
|
Immediately | $ 7.16 | ||||
| 21 | 62689-1 | Fan Grid |
|
- | |||||
| 22 | 65224-3 | Cover, Coil |
|
- | |||||
| 23 | 57117-7 | Heater |
|
- | |||||
| 23 | 57492-4-WW | Divider |
|
- | |||||
| 23 | 9986-111 | Screw |
|
- | |||||
| 24 | 57369-1 | Gasket |
|
- | |||||
| 25 | 54036-5 | Breaker Frame |
|
- | |||||
| 25 | 56142-1 | Nut, Motor Box |
|
- | |||||
| 26 | 400017-103 | Screw |
|
- | |||||
| 26 | 57402-5 | Cover |
|
- | |||||
| 27 | 29814-2 | Receptacle, Light |
|
- | |||||
| 28 | W11679940 | Light Bulb (25w,125v) (Replaces: 2386-1) |
|
Immediately | $ 10.17 | ||||
| 29 | 56432-2 | Switch |
|
- | |||||
| 30 | 53821-1 | Nut |
|
- | |||||
| 31 | 26527-5 | Drain Tube |
|
- | |||||
| 32 | 52526-1 | Grommet |
|
- | |||||
| 33 | 53727-1 | Retainer, Air Tunnel |
|
- | |||||
| 34 | 53727-1 | Retainer, Air Tunnel |
|
- | |||||
| 35 | 65651-3 | Shelf, Frz. |
|
- | |||||
| 36 | 65651-2 | Shelf, Frz. |
|
- | |||||
| 37 | 65651-1 | Shelf, Frz. No.2,3,4 |
|
- | |||||
| 38 | 65802-1 | Shelf Trim |
|
- | |||||
| 39 | 65577-5 | Drawer, Frz. |
|
- | |||||
| 40 | 65583-37 | Insert |
|
- | |||||
| 41 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 | |||||
| 42 | 65718-1 | Pan, Ice |
|
- | |||||
| 43 | 60614-6 | Insert |
|
- | |||||
| 43 | 57418-1 | Clip,food Liner Mount.(slides) |
|
- |
