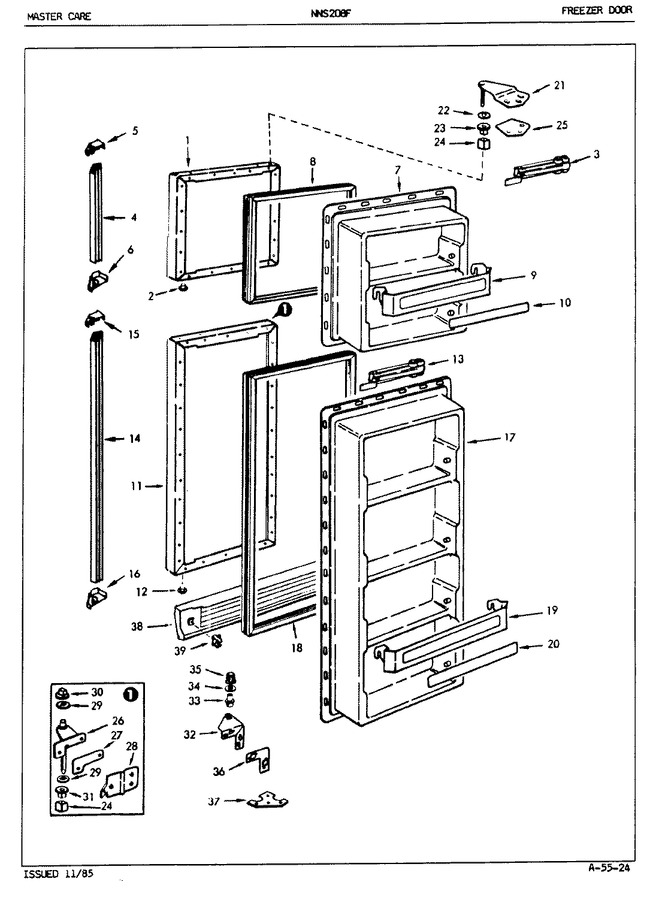

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 55583-28-AM | Panel, Door |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 52614-1 | Bracket, Closer |
|
- | |||||
| 3 | 52613-1 | Insulation, Closer |
|
- | |||||
| 3 | 54485-1 | Closer, Door |
|
- | |||||
| 4 | 420063-1 | Washer |
|
- | |||||
| 4 | 56835-38 | Handle |
|
- | |||||
| 4 | 402100-1 | Screw |
|
- | |||||
| 5 | 57947-1 | End Cap |
|
- | |||||
| 6 | 57947-2 | End Cap |
|
- | |||||
| 6 | 402077-7 | Screw |
|
- | |||||
| 7 | 9986-12 | Screw,door Liner |
|
- | |||||
| 7 | 59433-155 | Inner Panel |
|
- | |||||
| 8 | 53712-8 | Gasket |
|
- | |||||
| 9 | 59258-47 | Trim |
|
- | |||||
| 10 | 65246-1 | Retainer |
|
$ 5.04 | |||||
| 11 | 55583-45-AM | Outer Panel |
|
- | |||||
| 12 | 495034-900 | Plug Button, Door |
|
- | |||||
| 13 | 52613-1 | Insulation, Closer |
|
- | |||||
| 13 | 54485-1 | Closer, Door |
|
- | |||||
| 13 | 52614-1 | Bracket, Closer |
|
- | |||||
| 14 | 402100-1 | Screw |
|
- | |||||
| 14 | 420063-1 | Washer |
|
- | |||||
| 14 | 56835-37 | Handle |
|
- | |||||
| 15 | 57947-2 | End Cap |
|
- | |||||
| 16 | 402077-7 | Screw |
|
- | |||||
| 16 | 57947-1 | End Cap |
|
- | |||||
| 17 | 59433-154 | Inner Panel |
|
- | |||||
| 17 | 9986-12 | Screw,door Liner |
|
- | |||||
| 18 | 53712-15 | Gasket |
|
- | |||||
| 19 | 59258-45 | Trim |
|
- | |||||
| 21 | 53709-16 | Upper Hinge,(chrome) |
|
- | |||||
| 21 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 22 | 52185-2 | Washer |
|
- | |||||
| 23 | 66036-1 | Bushing,top/center Hinge |
|
- | |||||
| 24 | 55990-1 | Seal Sleeve |
|
- | |||||
| 25 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 26 | 54390-6 | Hinge |
|
- | |||||
| 26 | 9986-110 | Screw |
|
- | |||||
| 27 | 54386-4 | Spacer |
|
- | |||||
| 28 | 54031-2 | Tapping Plate |
|
- | |||||
| 29 | 52185-2 | Washer |
|
- | |||||
| 30 | 66036-2 | Bushing, Upper Hinge |
|
- | |||||
| 31 | 66036-2 | Bushing, Upper Hinge |
|
- | |||||
| 32 | 60630-10 | Hiner, Lower (chrome) |
|
$ 26.18 | |||||
| 32 | 403062-5 | Screw |
|
- | |||||
| 33 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 34 | 54233-2 | Washer |
|
- | |||||
| 35 | 66034-1 | Bushing, Lower Hinge |
|
$ 19.76 | |||||
| 36 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 37 | 65964-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 38 | 56477-6 | Kickplate |
|
- | |||||
| 39 | 52854-3 | Clip, Kickplate |
|
- |
