01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System

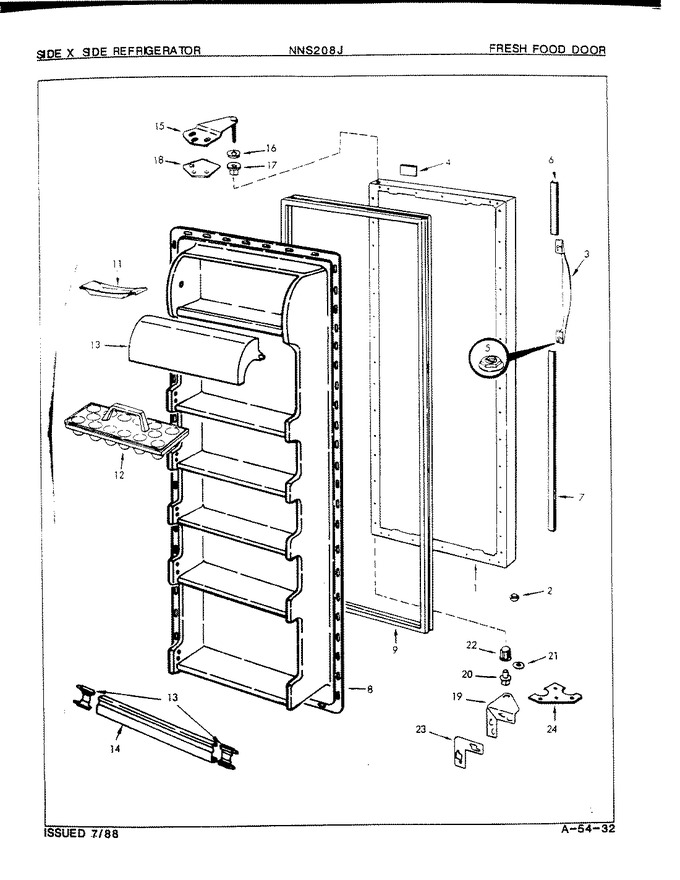

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62391-30-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	9986-122		Screw		Appelez-nous	-
3	63686-8		Handle		Appelez-nous	-
4	65211-1		Retainer, Nameplate		Appelez-nous	-
5	434003-506		Fastener		Appelez-nous	-
6	65774-27		Trim, Handle		Appelez-nous	-
7	65774-28		Trim Extension		Appelez-nous	-
8	65275-5		Screw		Appelez-nous	-
8	65944-15		Liner, F.f. Door		Appelez-nous	-
9	66929-6		Gasket		Appelez-nous	-
10	66184-445		Door, Dairy		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	60066-9		Tray, Egg		Appelez-nous	-
13	65246-1		Retainer				$ 5.04
14	60080-56		Trim, Door Shelf (lower)		Appelez-nous	-
15	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
15	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
16	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
17	66036-1		Bushing,top/center Hinge		Appelez-nous	-
18	65031-1		Shim, Upper Hinge		Appelez-nous	-
19	60630-12		Hinge, Lower		Appelez-nous	-
19	403062-5		Screw		Appelez-nous	-
20	53672-1		Pin, Lower Hinge		Appelez-nous	-
21	54233-1		Washer				$ 7.71
22	66034-1		Bushing, Lower Hinge				$ 19.76
23	62626-1		Spacer, Mtg Lower Hinge		Appelez-nous	-
24	52614-1		Bracket, Closer		Appelez-nous	-
24	60123-2		Clip, Stop Screw		Appelez-nous	-
24	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
24	54485-1		Closer, Door		Appelez-nous	-
24	55990-1		Seal Sleeve		Appelez-nous	-
24	52613-1		Insulation, Closer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
