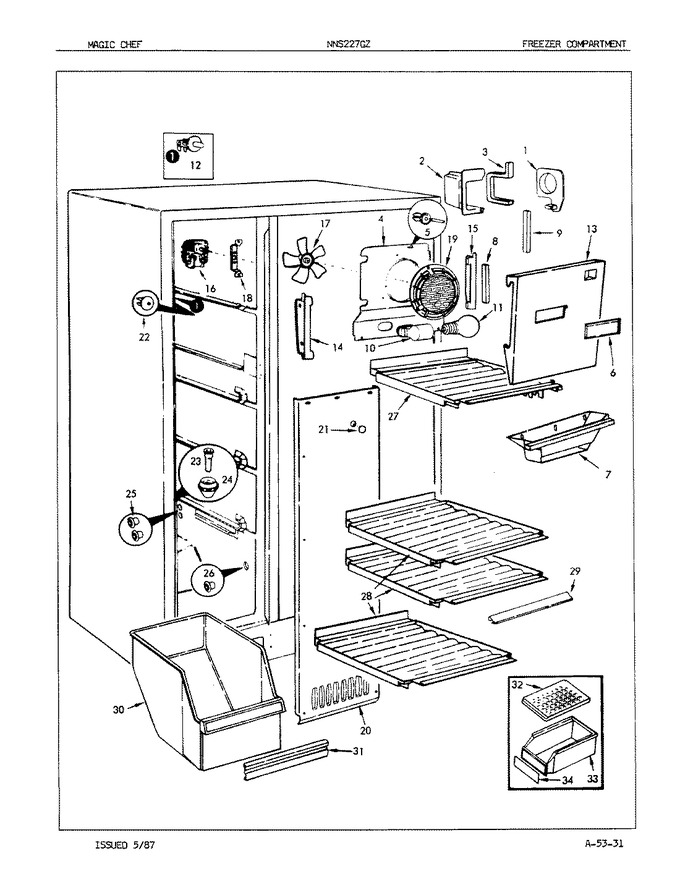

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54423-1		Orifice		Appelez-nous	-
2	53837-1		Shield		Appelez-nous	-
3	52077-10		Seal		Appelez-nous	-
4	62690-31		Cover, Coil		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
5	59920-1		Stud, Mounting Coil Cover		Appelez-nous	-
6	65706-1		Insert				$ 26.72
7	65693-1		Air Duct Asm		Appelez-nous	-
8	52077-19		Seal,upper Coil Cover To Liner		Appelez-nous	-
9	52824-6		Coil Seal		Appelez-nous	-
10	29814-2		Receptacle, Light		Appelez-nous	-
11	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
12	56432-2		Switch		Appelez-nous	-
13	65654-3		Shield, Light		Appelez-nous	-
14	53687-2		Support		Appelez-nous	-
15	54424-2		Support		Appelez-nous	-
16	56488-4		Motor		Appelez-nous	-
17	52120-1		Blade, Fan Frzr.		Appelez-nous	-
18	64856-2		Bracket, Fan Motor		Appelez-nous	-
19	62689-1		Fan Grid		Appelez-nous	-
19	WP67006908		Screw   (Replaces: 400022-1)			Immediately	$ 7.16
20	65224-4		Cover, Coil		Appelez-nous	-
21	495015-900		Plug Button		Appelez-nous	-
22	53821-1		Nut		Appelez-nous	-
23	26527-9		Drain Tube		Appelez-nous	-
24	52526-1		Grommet		Appelez-nous	-
25	53727-1		Retainer, Air Tunnel		Appelez-nous	-
26	53727-1		Retainer, Air Tunnel		Appelez-nous	-
27	65651-3		Shelf, Frz.		Appelez-nous	-
28	65651-1		Shelf, Frz. No.2,3,4		Appelez-nous	-
29	66318-1		Trim		Appelez-nous	-
30	65771-3		Drawer, Frz.		Appelez-nous	-
31	65583-62		Insert		Appelez-nous	-
32	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
33	66592-1		Pan		Appelez-nous	-
34	60614-9		Insert		Appelez-nous	-
34	57418-1		Clip,food Liner Mount.(slides)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
