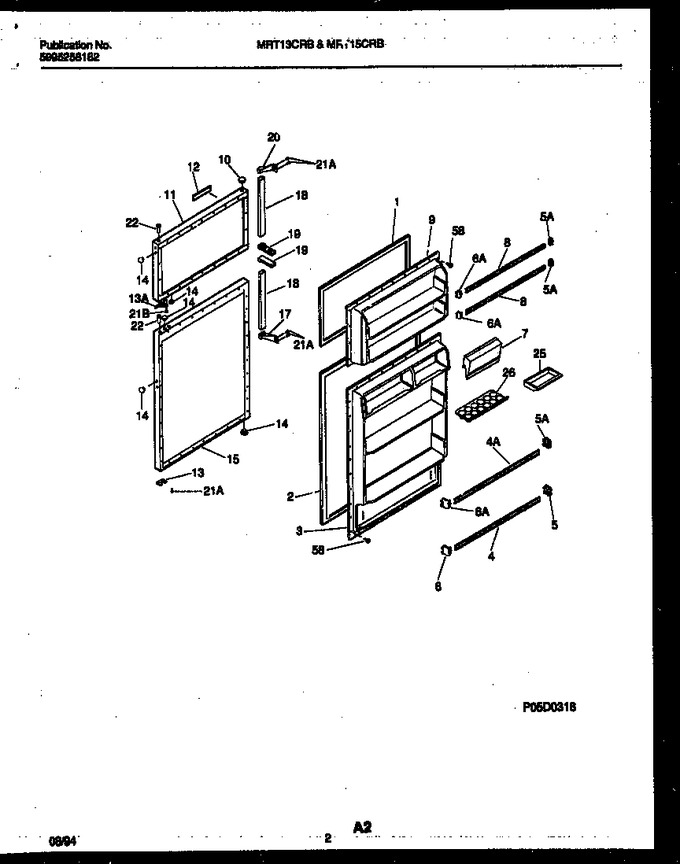

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303271483 | Panel-inner Door, Refr |
|
$ 343.77 | |||||
| 4 | 215366002 | Rack-door, 23.00`` X 1.62`` (Replaces: 5303280367) |
|
Immediately | $ 65.83 | ||||
| 5 | 3206150 | Support-door Rack, Extends 1/81``, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Extends 1.81``, Lh |
|
- | |||||
| 7 | 5303291495 | Door-dairy |
|
- | |||||
| 8 | 5303280622 | Rack-door, 22.59`` 1.12`` |
|
- | |||||
| 9 | 5303271486 | Panel-inner Door, Frzr |
|
$ 312.17 | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 17 | 5303001015 | Handle End |
|
$ 74.29 | |||||
| 19 | 218217401 | Handle End, (2) |
|
- | |||||
| 20 | 5303001014 | Handle End |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 25 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *11125 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 218251900 | Screw, No. 8 Oval Head, 10-32(ca) X 5/8, Crossed Recessed |
|
$ 10.55 | |||||
| 21B | 218252201 | Screw, Cr Truss Head, 10-32(ca) X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 4A | 5303280366 | Rack-door, 23.16`` X 1.12`` |
|
- | |||||
| 5A | 3206165 | Support-door Rack, Extends 1.06``, Rh |
|
Immediately | $ 8.19 | ||||
| 6A | 3206166 | Support-door Rack, Extends 1.06``, Lh |
|
Immediately | $ 9.93 |
