SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System

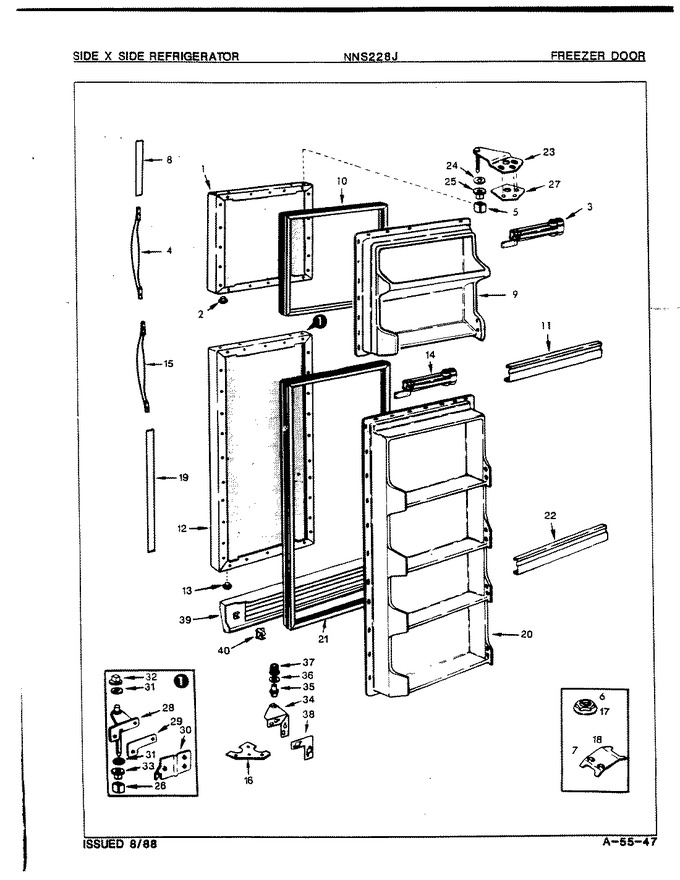

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66461-1-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
4	9986-122		Screw		Appelez-nous	-
4	63687-5		Handle		Appelez-nous	-
5	55990-1		Seal Sleeve		Appelez-nous	-
6	434003-506		Fastener		Appelez-nous	-
7	60123-2		Clip, Stop Screw		Appelez-nous	-
8	65774-27		Trim, Handle		Appelez-nous	-
9	65275-5		Screw		Appelez-nous	-
9	65946-8		Liner, Door		Appelez-nous	-
10	66929-8		Gasket		Appelez-nous	-
11	65701-9		Shelf Front		Appelez-nous	-
12	66461-2-AM		Outer Panel		Appelez-nous	-
13	495034-900		Plug Button, Door		Appelez-nous	-
14	54485-1		Closer, Door		Appelez-nous	-
14	52614-1		Bracket, Closer		Appelez-nous	-
14	52613-1		Insulation, Closer		Appelez-nous	-
15	63687-5		Handle		Appelez-nous	-
15	9986-122		Screw		Appelez-nous	-
16	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
17	434003-506		Fastener		Appelez-nous	-
18	60123-2		Clip, Stop Screw		Appelez-nous	-
19	65774-28		Trim Extension		Appelez-nous	-
20	65947-8		Liner, Door		Appelez-nous	-
20	65275-5		Screw		Appelez-nous	-
21	66929-13		Gasket		Appelez-nous	-
22	65701-9		Shelf Front		Appelez-nous	-
23	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
23	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
23	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
24	52185-2		Washer		Appelez-nous	-
25	66036-2		Bushing, Upper Hinge		Appelez-nous	-
26	55990-1		Seal Sleeve		Appelez-nous	-
27	65031-1		Shim, Upper Hinge		Appelez-nous	-
28	54390-6		Hinge		Appelez-nous	-
28	9986-110		Screw		Appelez-nous	-
29	54386-4		Spacer		Appelez-nous	-
30	54031-2		Tapping Plate		Appelez-nous	-
31	52185-2		Washer		Appelez-nous	-
32	66036-2		Bushing, Upper Hinge		Appelez-nous	-
33	66036-2		Bushing, Upper Hinge		Appelez-nous	-
34	60630-10		Hiner, Lower (chrome)				$ 26.18
34	403062-5		Screw		Appelez-nous	-
35	53672-1		Pin, Lower Hinge		Appelez-nous	-
36	54233-2		Washer		Appelez-nous	-
37	66034-1		Bushing, Lower Hinge				$ 19.76
38	60626-1		Shim, Lower Hinge		Appelez-nous	-
39	56477-8		Kickplate		Appelez-nous	-
40	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
40	52854-3		Clip, Kickplate		Appelez-nous	-
40	68121-35		Insert		Appelez-nous	-
