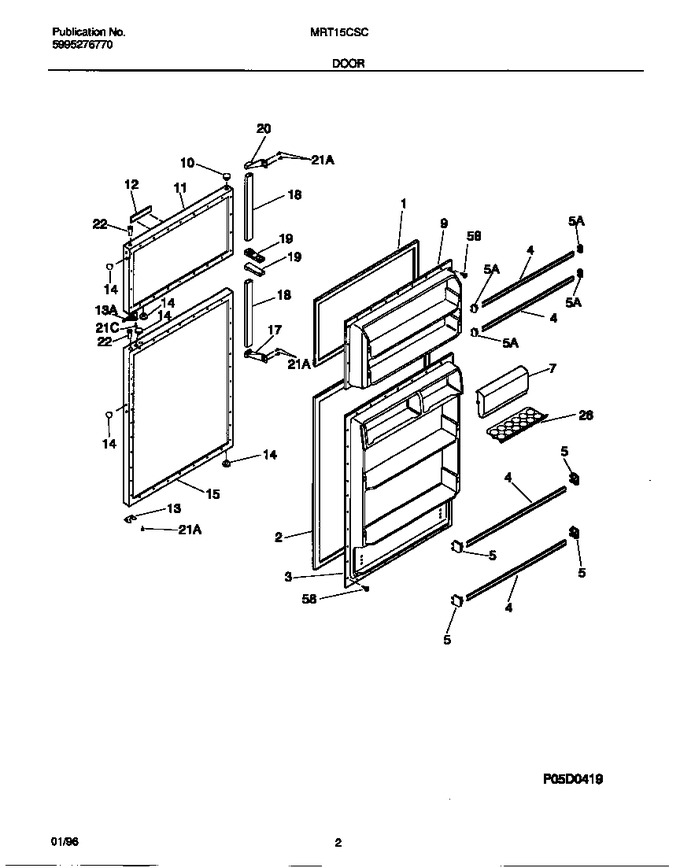

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, White, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	218287801		Door-dairy, 10.71`` Wide				$ 41.48
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917483		Panel-frzr Door, White		Appelez-nous	-
12	215503701		Frame-nameplate, White, W/mtg Tape		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917485		Panel-refr Door, White		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302990		Handle-door, White				$ 86.15
19	218217401		Handle End, (2)		Appelez-nous	-
20	5303001014		Handle End		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
*45600	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
