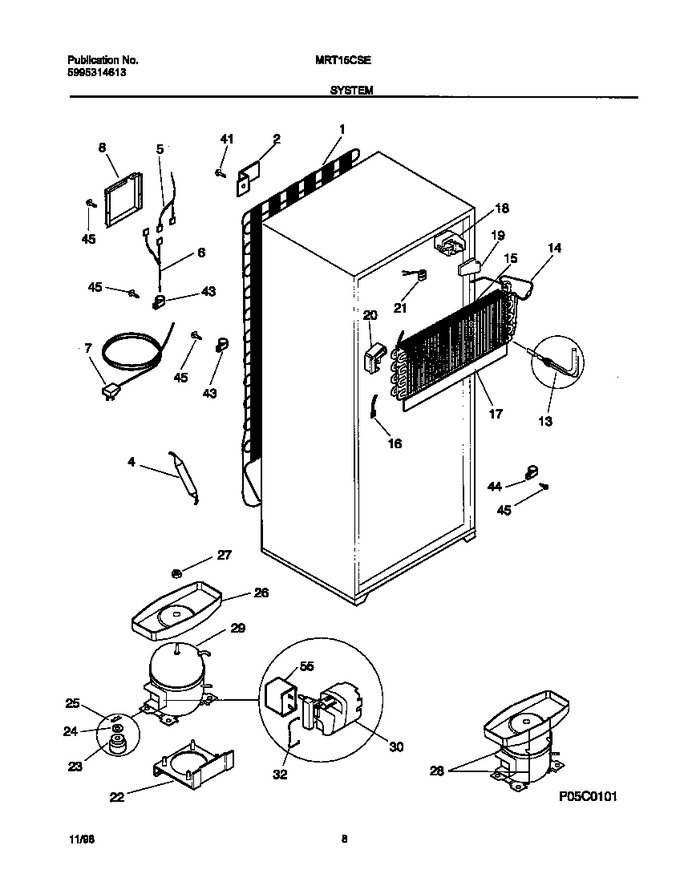

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218491000		Condenser		Appelez-nous	-
2	5308000296		Bracket,condenser Mtg ,(4)				$ 30.20
4	5303305677		Drier-filter   (Replaces: 218541000)			Immediately	$ 31.67
5	3018900		Harness-wiring, Control/divider		Appelez-nous	-
6	215257001		Harness-wiring, Compressor		Appelez-nous	-
7	5316254901		Cord-electric Power		Appelez-nous	-
8	5303001197		Cover-wiring		Appelez-nous	-
13	215076403		Heat Exchanger,suction Line		Appelez-nous	-
14	5308009754		Heater-defrost				$ 157.76
15	5303917951		Evaporator				$ 283.34
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5316651102		Insulator-evap, Plastic				$ 53.04
18	5308013648		Insulation Block, Rh		Appelez-nous	-
19	5303007287		Insulation Plug, Rh		Appelez-nous	-
20	5308017227		Insulation Block, Lh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	5308013663		Plate-compr Mtg		Appelez-nous	-
23	218254500		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5308003633		Washer-compr Mtg				$ 35.67
25	5308003596		Clip - Compressor Mtg				$ 6.62
26	215372500		Pan, Defrost Drain		Appelez-nous	-
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	5304478809		Compressor, R134a, W/o Electricals   (Replaces: 218374514)			Immediately	$ 584.96
30	218721101		Starter/overload Assy				$ 102.87
32	218740800		Wire-bale				$ 65.21
41	5308000039		Screw		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
*17148	5303017691		Spacer-tube				$ 64.91
*17149	5304406721		Spacer-tube,5/8 Od X .81``lg		Appelez-nous	-
*17150	218754500		Screw,hex Hd Ser Wshr ,8-18 X 3/8		Appelez-nous	-
*17151	5308003607		Washer, No. 10 Steel, 7/32 X 7/16 Od				$ 1.00
*17152	5308017610		Sound Tape,defrost Pan		Appelez-nous	-
*17153	5300141713		Screw,hex Wshr Hd ,8-32 X .625 ,spec		Appelez-nous	-
*17154	5304455852		Screw,hex Wshr Hd,8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
*17155	218750100		Cover-sound Insul,pressboard/foam ,machine Compt		Appelez-nous	-
*17156	5308009617		Washer, Ext Tooth Lock, No. 10		Appelez-nous	-
*17157	5300189383		Hot Tube Repair Kit-service				$ 613.15
