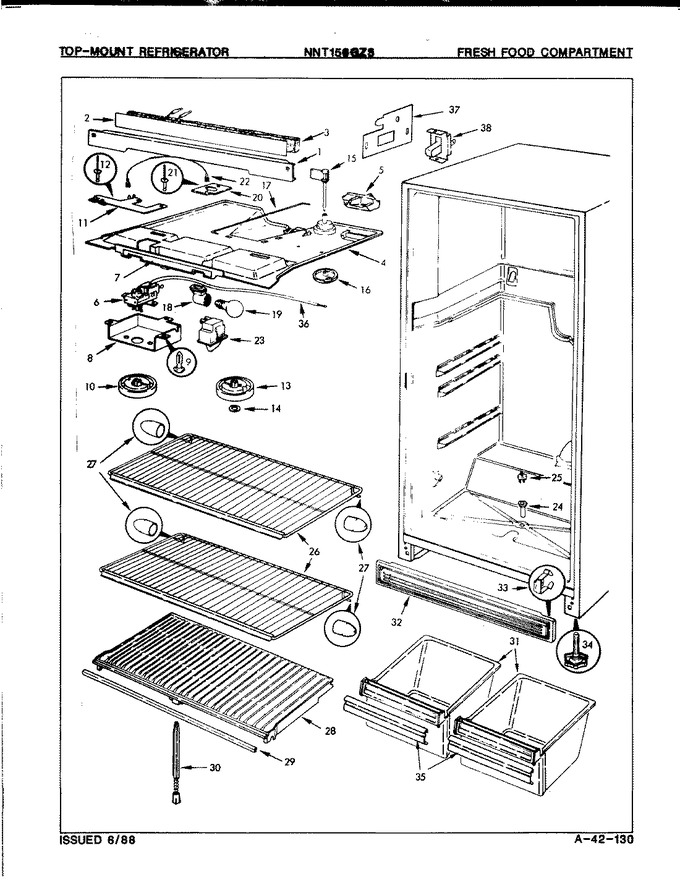

02 - Fresh Food Compartment
03 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65797-1-WW | Divider, Mullion (wht) |
|
- | |||||
| 1 | 65797-1-HW | Divider, Mullion (hw) |
|
- | |||||
| 1 | 9986-117 | Screw |
|
- | |||||
| 1 | 65797-1-AM | Divider, Mullion (alm) |
|
- | |||||
| 2 | 60105-10 | Heater Wire |
|
- | |||||
| 3 | 60140-1 | Insulation |
|
- | |||||
| 3 | 60560-1 | Wire Harness |
|
- | |||||
| 4 | 60085-35 | Top, F.f. Compartment |
|
- | |||||
| 5 | 60120-2 | Deflector |
|
- | |||||
| 6 | 406013-1 | Screw |
|
- | |||||
| 6 | 29675-22 | Ground Wire |
|
- | |||||
| 6 | WP68601-6 | Control, Temperature (Replaces: 66545-1) |
|
Immediately | $ 233.80 | ||||
| 7 | 60571-38 | Insert |
|
- | |||||
| 8 | 405012-1 | Screw |
|
- | |||||
| 8 | 60083-1 | Cover, Temperature Control |
|
- | |||||
| 9 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 10 | 68162-1 | Knob |
|
- | |||||
| 11 | 60147-1 | Bracket, Control |
|
- | |||||
| 12 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 13 | 68162-3 | Knob |
|
- | |||||
| 14 | 420092-900 | Washer, Spring |
|
- | |||||
| 15 | 66609-1 | Damper |
|
- | |||||
| 16 | 68161-3 | Crank |
|
- | |||||
| 17 | 60078-3 | Rod |
|
- | |||||
| 18 | 60577-1 | Socket, Light |
|
- | |||||
| 19 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) |
|
Immediately | $ 10.58 | ||||
| 20 | 60147-2 | Bracket, Light Socket |
|
- | |||||
| 21 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 22 | 29675-28 | Ground Wire |
|
- | |||||
| 23 | 54653-28 | Cord, Switch/light |
|
- | |||||
| 23 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 24 | 54531-8 | Grommet |
|
- | |||||
| 25 | 65039-1 | Cap, Drain Tube |
|
- | |||||
| 26 | 60220-9 | Shelf, Wire |
|
- | |||||
| 27 | 24580-3 | Tip |
|
- | |||||
| 28 | 66834-1 | Shelf, Crisper |
|
- | |||||
| 29 | 60454-10 | Trim |
|
- | |||||
| 30 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) |
|
$ 3.35 | |||||
| 31 | 60457-153 | Pan, Crisper |
|
- | |||||
| 32 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 32 | 60138-6 | Kickplate |
|
- | |||||
| 33 | 60100-1 | Clip, Kickplate |
|
$ 5.85 | |||||
| 34 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 | ||||
| 35 | 68129-10 | Insert |
|
- | |||||
| 36 | 4008-12 | Plastic Tube |
|
- |
