SELECT A DIAGRAM

01 - Cover

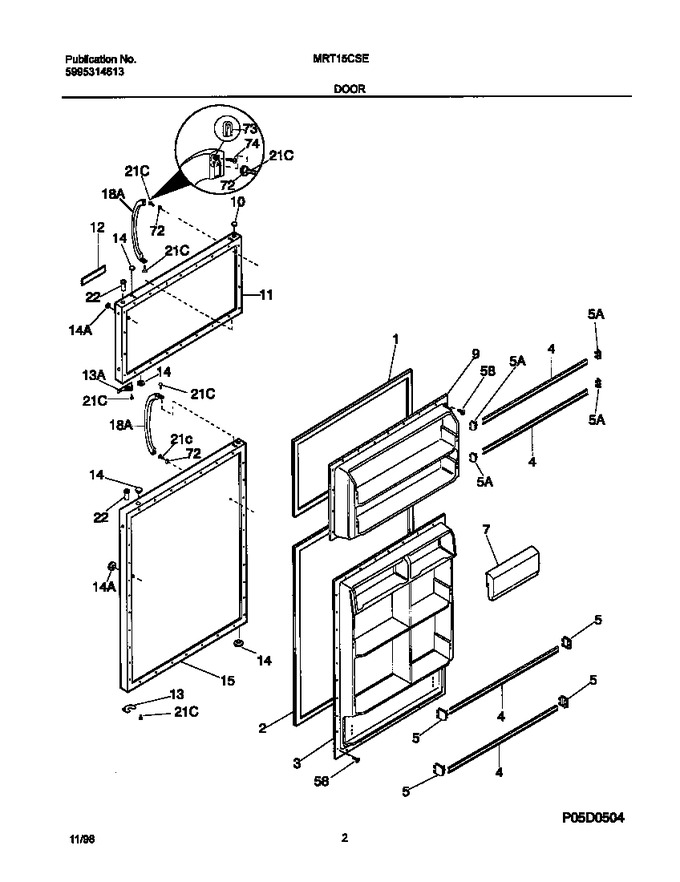

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, White, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
7	218287801		Door-dairy, 10.71`` Wide				$ 41.48
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917802		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	218428201		Frame-nameplate, White		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	218800300		Door Stop,plated		Appelez-nous	-
14	240494001		Plug-button, White   (Replaces: 5308000090)			Immediately	$ 18.20
14	240494001		Plug-button, White, Handle Mtg, Refr Door Front   (Replaces: 215352201)			Immediately	$ 18.20
15	5303917801		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218428101		Handle-door, White, W/block & Screw			Immediately	$ 22.73
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd ,10-16 X 1/2 ,spec/hi-lo   (Replaces: 215503200)			Immediately	$ 7.09
*17120	215518000		Magnet-nameplate		Appelez-nous	-
*17121	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
