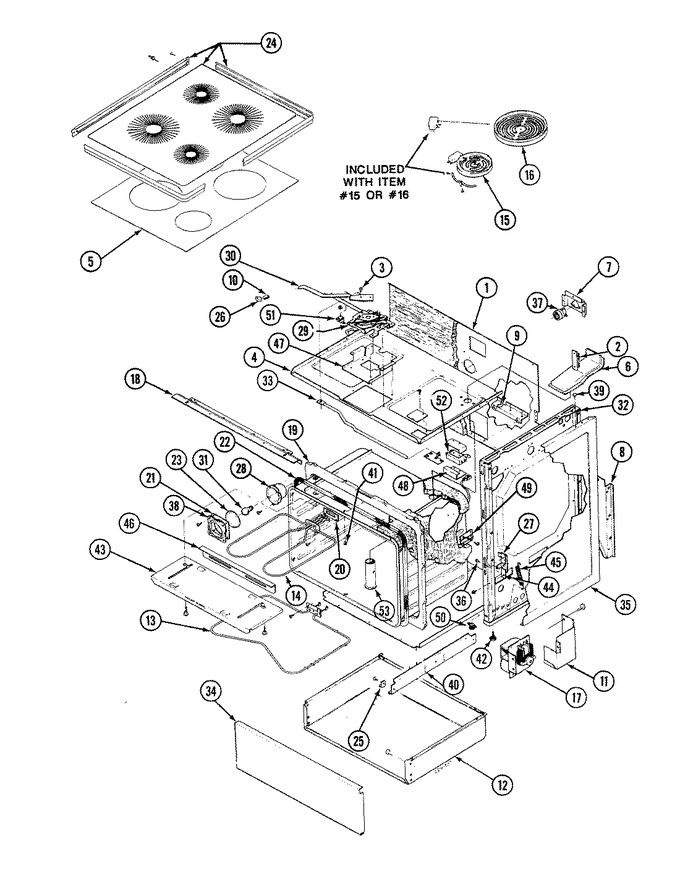

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F086-20 | Back, Main | 01 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 01 |
|
Immediately | $ 31.65 | |||
| 3 | 7116P003-60 | Bolt | 01 |
|
- | ||||
| 4 | 4011F129-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 5 | 3601F157-80 | Baffle | 01 |
|
- | ||||
| 5 | 4012F017-80 | Front, Burner Box Bottom | 01 |
|
- | ||||
| 6 | 4006W056-45 | Box Assy, Vent | 01 |
|
- | ||||
| 7 | 3801F024-51 | Bracket | 01 |
|
- | ||||
| 8 | 3801F093-51 | Bracket | 01 |
|
- | ||||
| 8 | 3801F125-20 | Bracket, Top Retaine | 01 |
|
- | ||||
| 8 | 3802F010-80 | Brace, Back-right | 01 |
|
- | ||||
| 8 | 3802F008-80 | Brace, Back-left | 01 |
|
- | ||||
| 9 | 3801F101-80 | Bracket, Tie Down | 01 |
|
- | ||||
| 10 | 4005F137-80 | Cover, Catch Assy. | 01 |
|
- | ||||
| 10 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 11 | 4005F179-20 | Cover, Fan Assy | 01 |
|
- | ||||
| 11 | 4005F182-20 | Cover, Wire Housing | 01 |
|
- | ||||
| 11 | 4005F139-51 | Cover, Switch | 01 |
|
- | ||||
| 12 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 13 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 01 |
|
$ 133.20 | ||||
| 14 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 01 |
|
$ 160.58 | ||||
| 15 | W10823704 | Element, Std (Replaces: 7406P058-60) | 18 |
|
Immediately | $ 309.01 | |||
| 15 | W10823704 | Element, Std. Ceram (Replaces: 7406P053-60) | 01 |
|
Immediately | $ 309.01 | |||
| 15 | 12500041 | Limiter Kit (6``) | 01 |
|
- | ||||
| 16 | W10823707 | Element, Giant (Replaces: 7406P057-60) | 18 |
|
Immediately | $ 316.13 | |||
| 16 | 12500040 | Limiter Kit (8``) | 01 |
|
- | ||||
| 16 | W10823707 | Element, Giant Cerm (Replaces: 7406P052-60) | 01 |
|
Immediately | $ 316.13 | |||
| 17 | 7427P005-60 | Fan Assembly | 01 |
|
- | ||||
| 18 | 4012F017-80 | Front, Burner Box Bottom | 01 |
|
- | ||||
| 19 | 2201F061-23 | Front, Oven Upper | 01 |
|
- | ||||
| 20 | 7201P003-60 | Gasket, Element | 01 |
|
- | ||||
| 21 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 21 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 22 | 7201P036-60 | Gasket, Oven | 01 |
|
$ 118.90 | ||||
| 23 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 24 | 5425A010-60 | Kit, Main Top | 01 |
|
- | ||||
| 24 | 5425A009-60 | Kit, Main Top (blk) | 01 |
|
- | ||||
| 25 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 25 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 26 | 7701P068-60 | Handle, Latch (blk) | 01 |
|
- | ||||
| 26 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 27 | 3418F029-34 | Hinge, Oven Door (lt) | 01 |
|
- | ||||
| 27 | 3418F030-34 | Hinge, Oven Door (rt) | 01 |
|
- | ||||
| 28 | 4396923 | Insert (Replaces: 3413F002-11) | 01 |
|
Immediately | $ 52.04 | |||
| 28 | 4001F020-13 | Housing | 01 |
|
- | ||||
| 29 | 8002P020-60 | Catch Assy. | 01 |
|
- | ||||
| 30 | 8009P009-60 | Lever, Door Lock | 01 |
|
- | ||||
| 31 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 32 | 4009W053-80 | Lining, Inner Side | 7 |
|
- | ||||
| 32 | 4009W029-80 | Lining Assy, Inner Side | 01 |
|
- | ||||
| 33 | 7807P004-60 | Link, Switch | 01 |
|
- | ||||
| 33 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 01 |
|
Immediately | $ 52.04 | |||
| 34 | 2416F006-74 | Panel, Service Drawer Almond | 01 |
|
- | ||||
| 34 | 2416F006-71 | Panel, Service Drawer White | 01 |
|
- |
