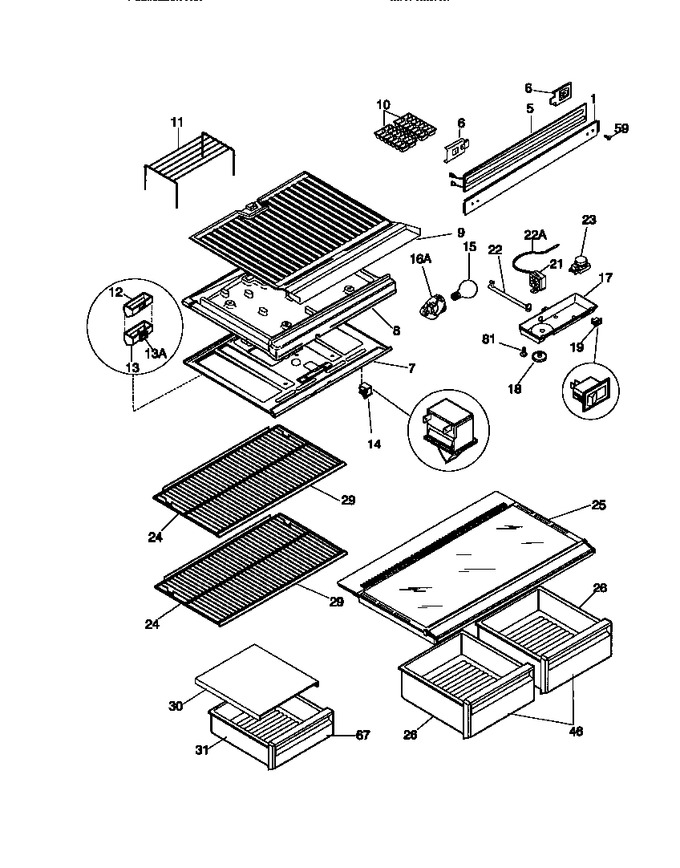

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218252501 | Mullion, White |
|
- | |||||
| 5 | 218271401 | Heater-mullion |
|
$ 135.66 | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 9 | 3206187 | Bottom Panel - Frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303282284 | Shelf-freezer, ``table Type`` (Replaces: 5303283280) |
|
Immediately | $ 88.05 | ||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 13 | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303307352 | Knob, Temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 22 | 3018891 | Housing-temp Sensor, Plastic |
|
- | |||||
| 22 | 5303916855 | Insulator, Plastic Tubing, Temp Sensor |
|
$ 60.96 | |||||
| 24 | 218272501 | Shelf, Sliding, Wire |
|
- | |||||
| 25 | 218314101 | Cover, Crisper Pan, With Beam |
|
$ 219.45 | |||||
| 26 | 3206180 | Pan - Crisper |
|
$ 155.70 | |||||
| 29 | 218366101 | Trim, Shelf, 23.28``, Front |
|
- | |||||
| 30 | 5303285319 | Cover-meat Pan |
|
$ 100.13 | |||||
| 31 | 3206209 | Pan-meat |
|
$ 183.70 | |||||
| 46 | 5303303588 | Front, Crisper Pan |
|
$ 42.44 | |||||
| 59 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 67 | 5303309966 | Front-meat Pan |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 12A | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 12B | 5303001449 | Seal, Air Deflector (not Illustrated) |
|
$ 2.12 | |||||
| 17A | 5303307349 | Box, Control |
|
- | |||||
| 17B | 5308016567 | Nut, Anchor (not Illustrated) |
|
- | |||||
| 21A | 5303305486 | Control-temperature |
|
$ 122.43 | |||||
| 21B | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 23B | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 3206185 | Top Panel - Refr |
|
- | |||||
| 7B | 5303001380 | Screw |
|
- | |||||
| 8A | 3206186 | Divider, Styrofoam |
|
- | |||||
| 8B | 3018900 | Harness, Wiring, Control/divider (not Illustrated) |
|
- | |||||
| 8C | 3205266 | Protector, Edge (not Illustrated) |
|
$ 80.09 |
