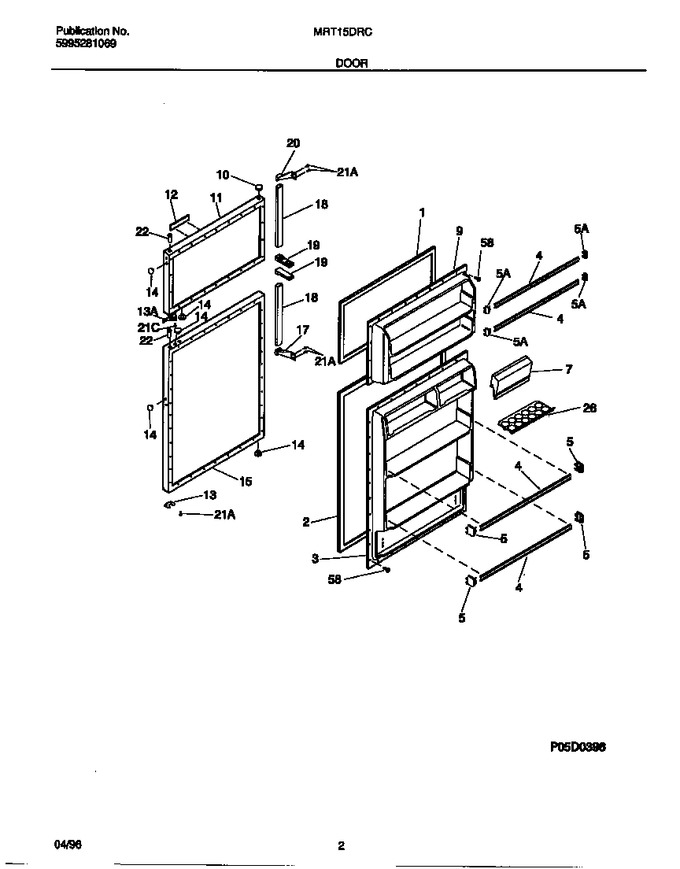

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917483		Panel-frzr Door, White		Appelez-nous	-
12	215503701		Frame-nameplate, White, W/mtg Tape		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917485		Panel-refr Door, White		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302990		Handle-door, White				$ 86.15
19	218217401		Handle End, (2)		Appelez-nous	-
20	5303001014		Handle End		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
26	215817806		Tray-egg				$ 13.46
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
*26480	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
7A	218287802		Door-dairy, 10.71`` Wide		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
