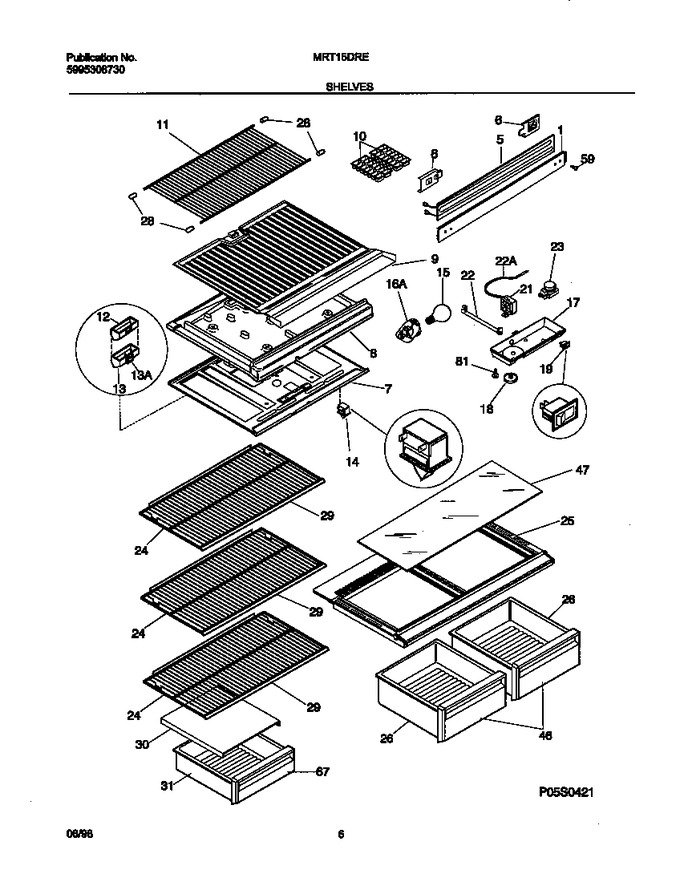

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218651800 | Mullion, White |
|
- | |||||
| 5 | 218781001 | Heater-mullion |
|
$ 50.56 | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 218597400 | Top Panel-refr |
|
- | |||||
| 8 | 218781300 | Divider,styrofoam |
|
- | |||||
| 9 | 3206187 | Bottom Panel - Frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303283107 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
$ 155.82 | |||||
| 12 | 218630800 | Deflector-air |
|
- | |||||
| 13 | 5303200590 | Extension, Air Deflector, For 2-pc Cover |
|
- | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17 | 5303321455 | Control Box |
|
$ 46.16 | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 21 | 5303305486 | Control-temperature |
|
$ 122.43 | |||||
| 22 | 5303916855 | Tube, Plastic, Clear, Sensor Sleeve |
|
$ 60.96 | |||||
| 22 | 5303319707 | Housing-temp Sensor, Plastic |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 218272501 | Shelf, Sliding, Wire |
|
- | |||||
| 25 | 218314102 | Cover-crisper Pan, With Beam |
|
$ 221.99 | |||||
| 26 | 3206180 | Pan - Crisper |
|
$ 155.70 | |||||
| 28 | 3201150 | End Cap-shelf, Protector, Upper Fzr Shelf |
|
$ 4.57 | |||||
| 29 | 218366101 | Trim, Shelf, 23.28``, Front |
|
- | |||||
| 30 | 5303285319 | Cover-meat Pan |
|
$ 100.13 | |||||
| 31 | 3206209 | Pan-meat |
|
$ 183.70 | |||||
| 46 | 5303309849 | Front-crisper Pan |
|
$ 199.40 | |||||
| 47 | 218390598 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 67 | 5303309850 | Front-meat Pan |
|
$ 86.42 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *43811 | 5303001380 | Screw |
|
- | |||||
| *43812 | 3018900 | Harness-wiring, Control/divider |
|
- | |||||
| *43813 | 5303299664 | Spacer-shelf |
|
$ 24.10 | |||||
| *43814 | 5303001449 | Seal-air Deflector,foam Plastic ,(2) |
|
$ 2.12 | |||||
| *43815 | 5308016567 | Nut-anchor |
|
- | |||||
| *43816 | 5303001260 | Screw |
|
$ 6.73 | |||||
| *43817 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
