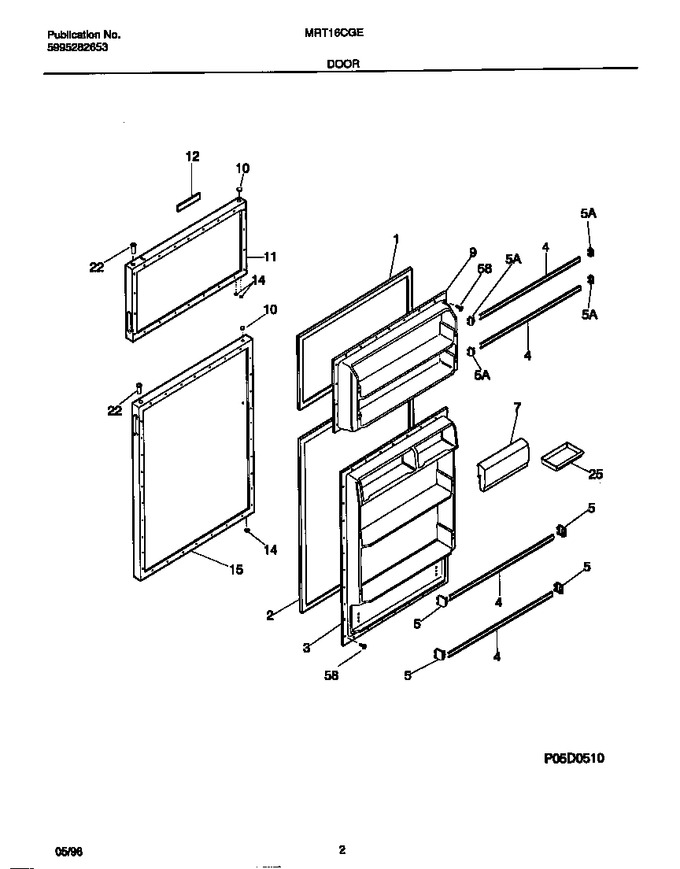

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	218287801		Door-dairy, 10.71`` Wide				$ 41.48
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	218615700		Panel-frzr Door, Almond, With Handles, And Insulation		Appelez-nous	-
12	218504704		Nameplate Assy, Almond, W/mtg Tape		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	218615800		Panel-refr Door, Almond, With Handles, Insul, & Brace		Appelez-nous	-
22	218519300		Bearing-hinge				$ 14.60
25	5308000716		Dish-butter				$ 20.48
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
*56880	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
