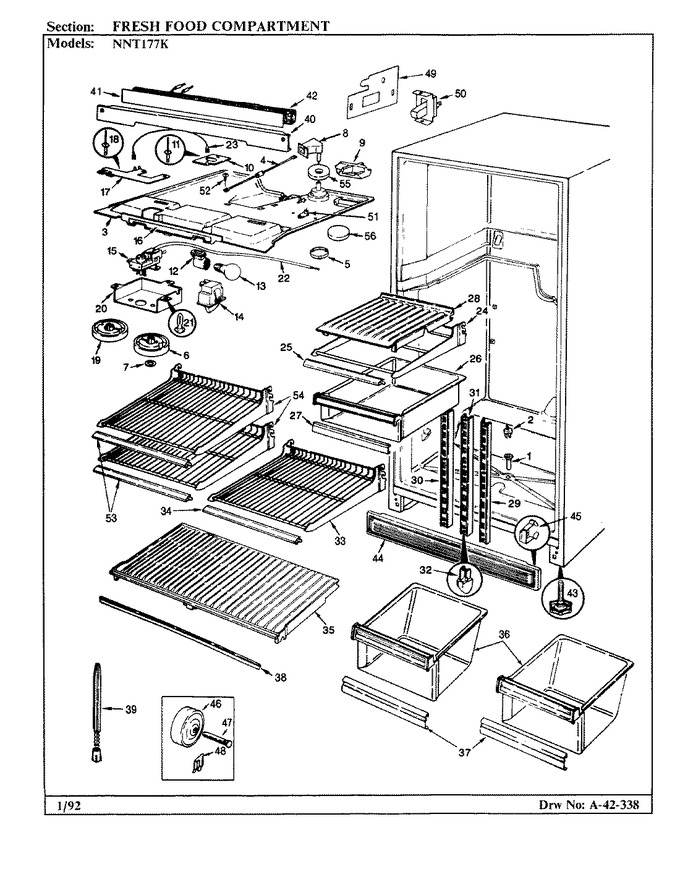

01 - Freezer Compartment


02 - Fresh Food Compartment


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54531-8		Grommet		Appelez-nous	-
2	65039-1		Cap, Drain Tube		Appelez-nous	-
3	68530-2		Top, F.f. Compartment		Appelez-nous	-
4	67499-3		Rod, Freezer Control		Appelez-nous	-
5	67493-1		Cover, Crank		Appelez-nous	-
6	68600-8		Knob, Temp. Control		Appelez-nous	-
6	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
7	420092-900		Washer, Spring		Appelez-nous	-
8	67558-6		Damper		Appelez-nous	-
9	60120-2		Deflector		Appelez-nous	-
10	60147-2		Bracket, Light Socket		Appelez-nous	-
11	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
12	60577-1		Socket, Light		Appelez-nous	-
13	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
14	54653-28		Cord, Switch/light		Appelez-nous	-
14	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
15	406013-1		Screw		Appelez-nous	-
15	WP68601-6		Control, Temperature   (Replaces: 68119-3)			Immediately	$ 233.80
16	60571-64		Insert, Control		Appelez-nous	-
17	60147-1		Bracket, Control		Appelez-nous	-
18	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
19	68600-7		Knob, Control		Appelez-nous	-
20	405012-1		Screw		Appelez-nous	-
20	60083-1		Cover, Temperature Control		Appelez-nous	-
21	28013-2		Rivet, Air Tunnel		Appelez-nous	-
22	4008-12		Plastic Tube		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	60416-4		Shelf		Appelez-nous	-
25	60414-62		Trim		Appelez-nous	-
26	66524-8		Pan, Meat		Appelez-nous	-
27	66230-10		Handle		Appelez-nous	-
28	60075-1		Cover		Appelez-nous	-
29	60096-5		Support		Appelez-nous	-
30	60096-4		Support		Appelez-nous	-
31	60096-6		Support		Appelez-nous	-
31	400037-1		Screw		Appelez-nous	-
32	60340-1		End Cap, Center Rail		Appelez-nous	-
33	60417-5		Shelf		Appelez-nous	-
34	60414-62		Trim		Appelez-nous	-
35	66644-2		Shelf, Crisper		Appelez-nous	-
36	68221-415		Pan, Crisper		Appelez-nous	-
37	60132-103		Handle Crisper Pan		Appelez-nous	-
38	60454-9		Trim, Crisper Shelf		Appelez-nous	-
39	12001957		Support, Crisper Shelf   (Replaces: 66105-4)				$ 3.35
40	68434-1-WW		Divider, Mullion (wht)		Appelez-nous	-
40	68903-1		Wire Harness		Appelez-nous	-
40	69146-1		Wire Harness Mullion		Appelez-nous	-
41	68830-1		Heater Wire		Appelez-nous	-
41	68577-1		Insulation		Appelez-nous	-
42	60140-1		Insulation		Appelez-nous	-
43	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
44	60237-37		Kickplate		Appelez-nous	-
45	60100-1		Clip, Kickplate				$ 5.85
45	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
46	29834-2		Wheel		Appelez-nous	-
47	29835-2		Pin, Wheel		Appelez-nous	-
48	60216-1		Clip		Appelez-nous	-
49	60583-1		Bracket, Switch		Appelez-nous	-
49	402013-1		Screw		Appelez-nous	-
50	60585-1		Switch, Mullion Heater		Appelez-nous	-
51	67636-1		Crank, Frz. Control		Appelez-nous	-
52	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
52	420005-1		Washer, Control Rod		Appelez-nous	-
53	60414-39		Trim		Appelez-nous	-
54	60417-8		Shelf		Appelez-nous	-
55	68989-1		Seal, Top Tower		Appelez-nous	-
56	69037-1		Disc, Crank Cover		Appelez-nous	-
