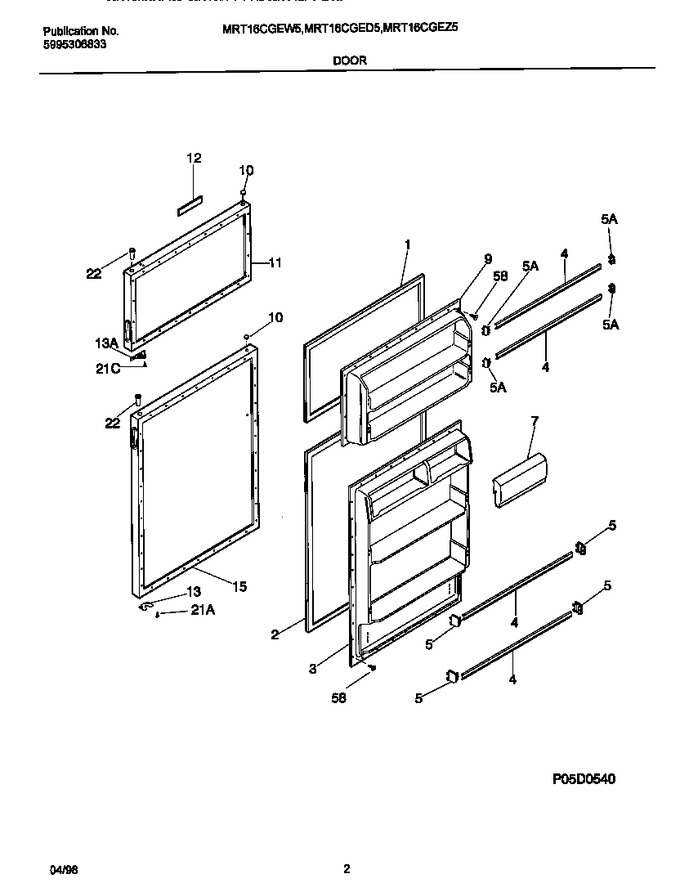

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 218730604)				$ 62.07
3	218460801		Panel-inner Door, Refr				$ 269.28
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
5	215473602		Support-door Rack,rh/lh			Immediately	$ 11.58
7	218287801		Door-dairy, 10.71`` Wide				$ 41.48
9	218460701		Panel-inner Door, Frzr				$ 292.02
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	218497402		Panel-frzr Door, Almond, With Handles &, Foam Insulation		Appelez-nous	-
12	218439129		Nameplate Assy, Almond, W/mounting Tape		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
15	218497502		Panel-refr Door, Almond, With Handles, Insul, & Brace		Appelez-nous	-
22	218519300		Bearing-hinge				$ 14.60
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
*60120	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*60121	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
21B	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
