SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves

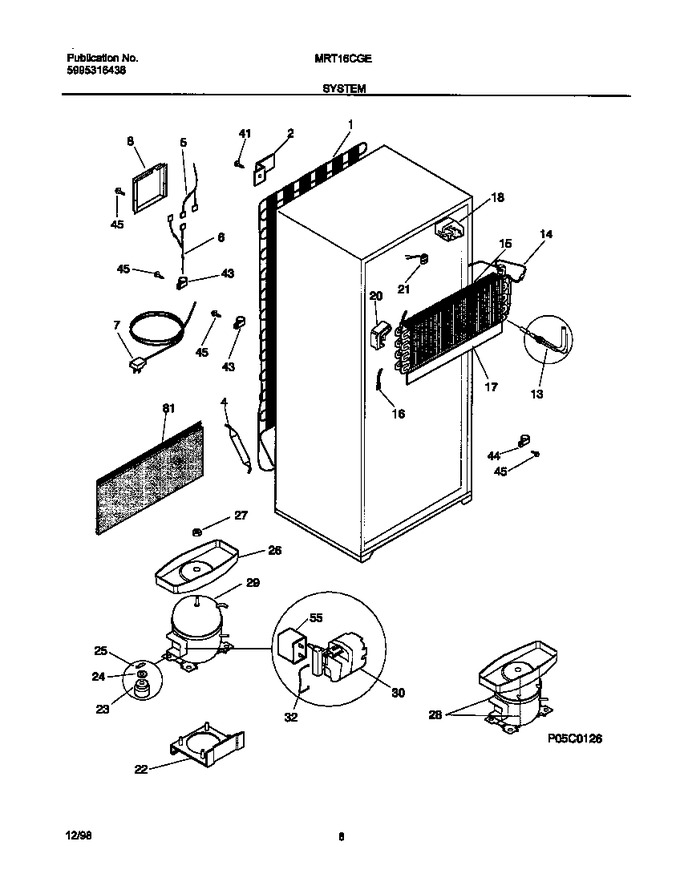

05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218491000		Condenser		Appelez-nous	-
2	5308000296		Bracket,condenser Mtg ,(4)				$ 30.20
4	5303305677		Drier-filter   (Replaces: 218541000)			Immediately	$ 31.67
5	218878500		Harness-wiring,control/divider				$ 105.99
6	215257001		Harness-wiring, Compressor		Appelez-nous	-
7	5316254901		Cord-electric Power		Appelez-nous	-
8	5303001197		Cover-wiring		Appelez-nous	-
13	215076403		Heat Exchanger,suction Line		Appelez-nous	-
14	5308009754		Heater-defrost				$ 157.76
15	218818701		Evaporator		Appelez-nous	-
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5316651102		Insulator-evap, Plastic				$ 53.04
18	218821301		Insulation Block,rh		Appelez-nous	-
19	5303007287		Insulation Plug, Rh		Appelez-nous	-
20	218821201		Insulation Block,lh		Appelez-nous	-
21	297216600		Thermostat-defrost   (Replaces: 218673008)			Immediately	$ 27.52
22	5308013663		Plate-compr Mtg		Appelez-nous	-
23	218254500		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5308003633		Washer-compr Mtg				$ 35.67
25	5308003596		Clip - Compressor Mtg				$ 6.62
26	215372500		Pan, Defrost Drain		Appelez-nous	-
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	5304511983		Compressor,r134a ,w/o Electricals   (Replaces: 218846902)				$ 671.86
30	5304491944		Starter/overload Assy   (Replaces: 218721103)				$ 119.42
32	218740800		Wire-bale				$ 65.21
41	5308000039		Screw		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
81	218750100		Cover-sound Insul,pressboard/foam ,machine Compt		Appelez-nous	-
*94223	5303017691		Spacer-tube				$ 64.91
*94224	5304406721		Spacer-tube,5/8 Od X .81``lg		Appelez-nous	-
*94225	5308009617		Washer, Ext Tooth Lock, No. 10		Appelez-nous	-
*94226	218754500		Screw,hex Hd Ser Wshr ,8-18 X 3/8		Appelez-nous	-
*94227	5303270512		Nut,8-32 ,(2)		Appelez-nous	-
*94228	5308003607		Washer, No. 10 Steel, 7/32 X 7/16 Od				$ 1.00
*94229	5308013390		Bracket-grounding		Appelez-nous	-
*94230	5308017610		Sound Tape,defrost Pan		Appelez-nous	-
*94231	5300141713		Screw,hex Wshr Hd ,8-32 X .625 ,spec		Appelez-nous	-
*94232	5303210353		Screw,hex Wshr Hd ,8-32ca X .5		Appelez-nous	-
*94233	5300189383		Hot Tube Repair Kit-service				$ 613.15

    View Diagram in Separate Window       Print Part List
