01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

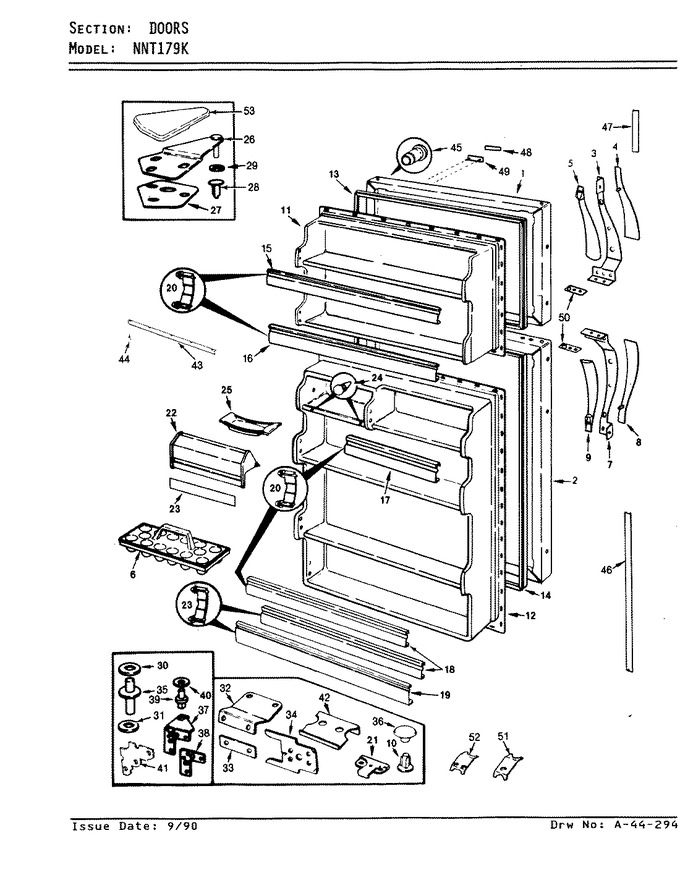

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68472-4-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68471-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	68036-1		Insert		Appelez-nous	-
4	68048-1		Insert		Appelez-nous	-
5	60580-3		Insert		Appelez-nous	-
6	60066-5		Tray, Egg		Appelez-nous	-
7	9986-122		Screw		Appelez-nous	-
7	66255-2		Door Handle		Appelez-nous	-
8	68036-1		Insert		Appelez-nous	-
9	60580-3		Insert		Appelez-nous	-
9	9986-112		Screw		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	65929-13		Liner, Door		Appelez-nous	-
12	9986-12		Screw,door Liner		Appelez-nous	-
12	65934-5		Liner, F.f. Door		Appelez-nous	-
13	66199-3		Gasket, Door		Appelez-nous	-
14	66199-4		Gasket, Door		Appelez-nous	-
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-282)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-283)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-281)				$ 129.55
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-282)				$ 129.55
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-284)				$ 129.55
20	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
21	60419-10		Door Stop		Appelez-nous	-
22	60406-43		Door, Dairy		Appelez-nous	-
23	68128-16		Insert		Appelez-nous	-
24	28272-6		Bumper, Door		Appelez-nous	-
25	29936-2		Tray, Butter		Appelez-nous	-
26	53709-20		Hinge, Upper		Appelez-nous	-
27	65031-1		Shim, Upper Hinge		Appelez-nous	-
28	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
29	54233-2		Washer		Appelez-nous	-
30	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
31	54233-1		Washer				$ 7.71
31	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
32	68811-2		Hinge, Center		Appelez-nous	-
33	68812-1		Shim, Center Hinge		Appelez-nous	-
34	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
34	65275-24		Screw		Appelez-nous	-
35	67322-1		Pin, Center Hinge		Appelez-nous	-
36	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
36	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
37	403100-1		Screw		Appelez-nous	-
37	67714-6		Hinge, Lower		Appelez-nous	-
38	60626-1		Shim, Lower Hinge		Appelez-nous	-
39	68788-1		Hinge Pin		Appelez-nous	-
40	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
41	65790-3		Tapping Plate		Appelez-nous	-
41	403100-1		Screw		Appelez-nous	-
42	60030-4		Door Stop		Appelez-nous	-
42	9986-108		Screw		Appelez-nous	-
43	68544-1		Seal, Secondary		Appelez-nous	-
44	52447-4		Clip		Appelez-nous	-
45	29356-1		Retainer, Nameplate		Appelez-nous	-
46	60453-16		Handle Ext		Appelez-nous	-
47	60453-17		Handle Ext		Appelez-nous	-
48	66982-8		Bezel, Nameplate		Appelez-nous	-
49	66986-3		Bezel, Nameplate		Appelez-nous	-
50	68776-1		Shim Handle----na		Appelez-nous	-
51	69257-1		Clip, Handle		Appelez-nous	-
52	60123-2		Clip, Stop Screw		Appelez-nous	-
53	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
53	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
