SELECT A DIAGRAM

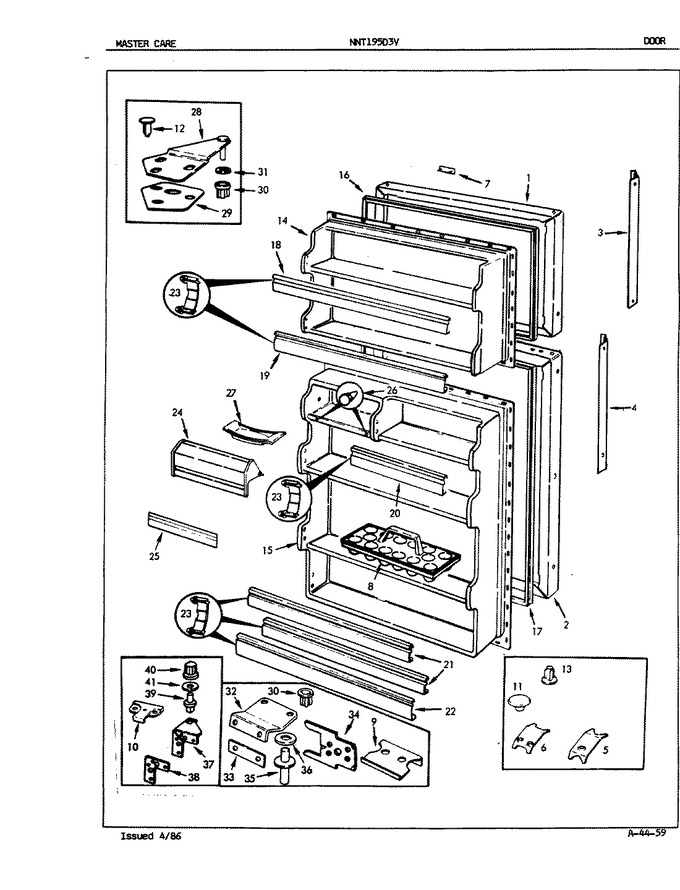

01 - Door


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-31-AM		Outer Panel		Appelez-nous	-
2	60032-57-AM		Outer Panel		Appelez-nous	-
3	56826-22		Handle		Appelez-nous	-
4	56826-21		Handle		Appelez-nous	-
4	9986-108		Screw		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	9986-122		Screw		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	65791-3		Nameplate		Appelez-nous	-
8	60066-2		Tray, Egg		Appelez-nous	-
9	60030-1		Door Stop		Appelez-nous	-
10	60419-1		Door Stop		Appelez-nous	-
11	56186-6		Plug Button, (almond)		Appelez-nous	-
12	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	60042-22		Inner Panel		Appelez-nous	-
15	9986-12		Screw,door Liner		Appelez-nous	-
15	60049-23		Inner Panel		Appelez-nous	-
16	60462-5		Gasket, Door		Appelez-nous	-
17	WP70048-3		Gasket, Door   (Replaces: 60462-6)				$ 283.11
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-142)				$ 129.55
19	65151-130		Trim, Door Shelf		Appelez-nous	-
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-66)				$ 129.55
21	WP61003045		Trim, Door Shelf   (Replaces: 65151-142)				$ 129.55
22	WP61003045		Trim, Door Shelf   (Replaces: 65151-154)				$ 129.55
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	60358-9		Door, Dairy		Appelez-nous	-
25	60573-4		Insert		Appelez-nous	-
26	28272-6		Bumper, Door		Appelez-nous	-
27	29936-2		Tray, Butter		Appelez-nous	-
28	53709-18		Door Hinge, Upper		Appelez-nous	-
29	65031-1		Shim, Upper Hinge		Appelez-nous	-
30	66036-1		Bushing,top/center Hinge		Appelez-nous	-
31	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
31	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
32	60031-2		Door Hinge, Center		Appelez-nous	-
33	60034-1		Spacer, Center Hinge		Appelez-nous	-
34	60622-1		Tapping Plate		Appelez-nous	-
34	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
35	60035-4		Pin, Center Hinge		Appelez-nous	-
36	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
37	60630-8		Door Hinge, Lower		Appelez-nous	-
38	60626-1		Shim, Lower Hinge		Appelez-nous	-
39	53672-1		Pin, Lower Hinge		Appelez-nous	-
40	66034-1		Bushing, Lower Hinge				$ 19.76
41	402077-7		Screw		Appelez-nous	-
41	54233-2		Washer		Appelez-nous	-
41	403062-5		Screw		Appelez-nous	-
