New Model Search:

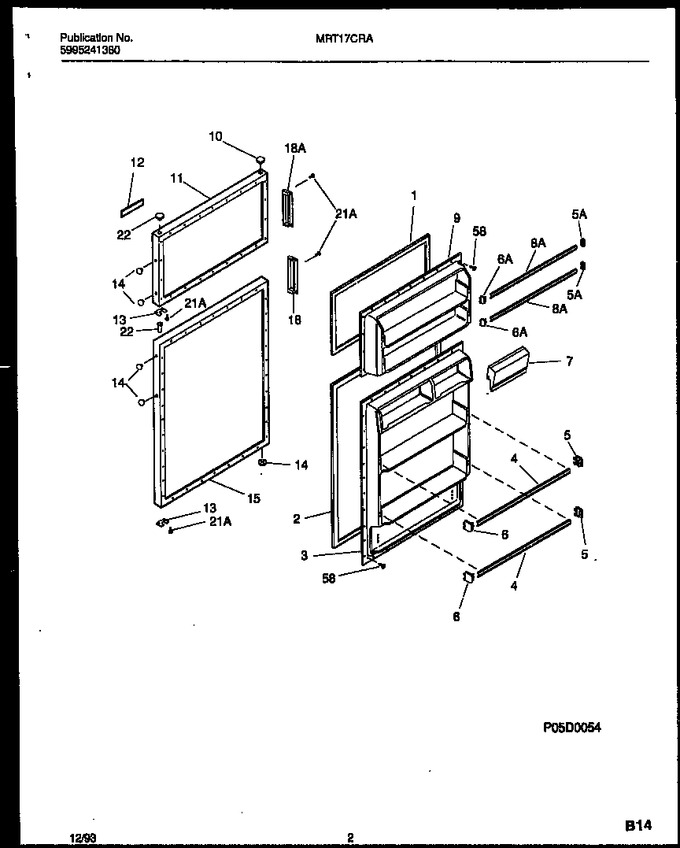

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007123 | Gasket-frzr Door, Magnetic, White |
|
$ 188.54 | |||||
| 2 | 218730603 | Gasket-refr Door, Magnetic, White (Replaces: 5318680311) |
|
$ 62.07 | |||||
| 3 | 215026201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366002 | Rack-door, Long/wide, (2) (Replaces: 215366034) |
|
Immediately | $ 65.83 | ||||
| 5 | 3206161 | Support-door Rack, Rh |
|
- | |||||
| 6 | 3206162 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303300069 | Door-dairy |
|
- | |||||
| 9 | 5303290026 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916912 | Panel-frzr Door, White, W/ Insulation |
|
- | |||||
| 12 | 215503701 | Frame-nameplate, White, W/ Tape |
|
- | |||||
| 13 | 5308000255 | Door Stop-frzr |
|
$ 42.20 | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916914 | Panel-refr Door, White, W/ Insulation |
|
- | |||||
| 18 | 5303273079 | Handle-door, White |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *90552 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340712 | Tape-double Faced, Foam, 12`` Pc, Nameplate (non-illustrated) |
|
- | |||||
| 18A | 5303273081 | Handle-door, White |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 5A | 3206156 | Support-door Rack, Rh |
|
- | |||||
| 6A | 3206157 | Support-door Rack, Lh |
|
- | |||||
| 8A | 5303300237 | Rack-door, Long/narrow, (2) |
|
$ 133.93 |
