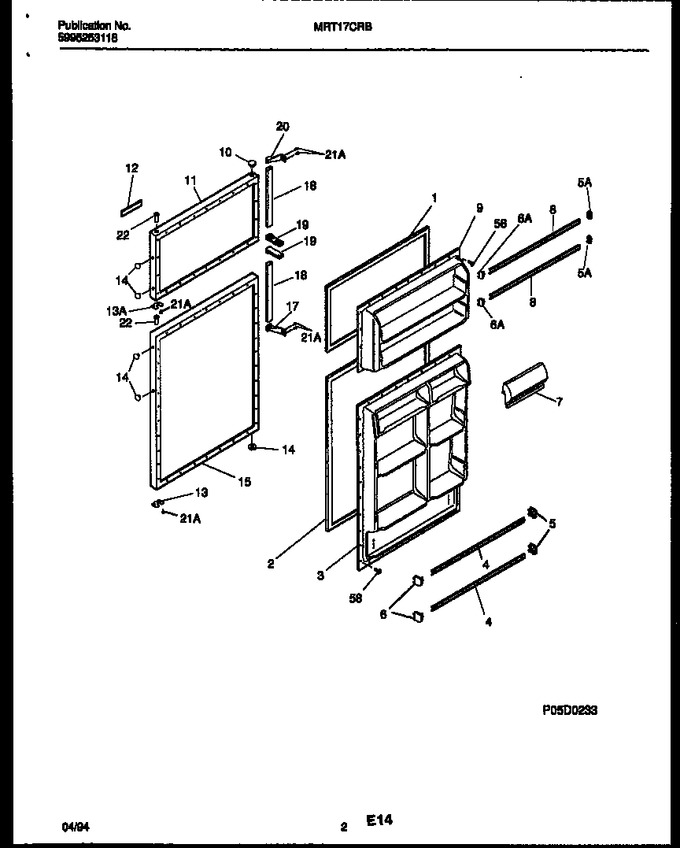

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, White, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	215026201		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door, Long/wide   (Replaces: 215366034)			Immediately	$ 65.83
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304618		Door-dairy				$ 67.78
8	5303300237		Rack-door, Long/narrow				$ 133.93
9	5303290026		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	3916413		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215503701		Frame-nameplate, White, W/mtg Tape		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916417		Panel-refr Door, White, W/insulation		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302990		Handle-door, White				$ 86.15
19	5303001296		Handle End, (2)				$ 86.36
20	5303001014		Handle End		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*98860	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
21A	5308011745		Screw				$ 10.38
5A	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
6A	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
