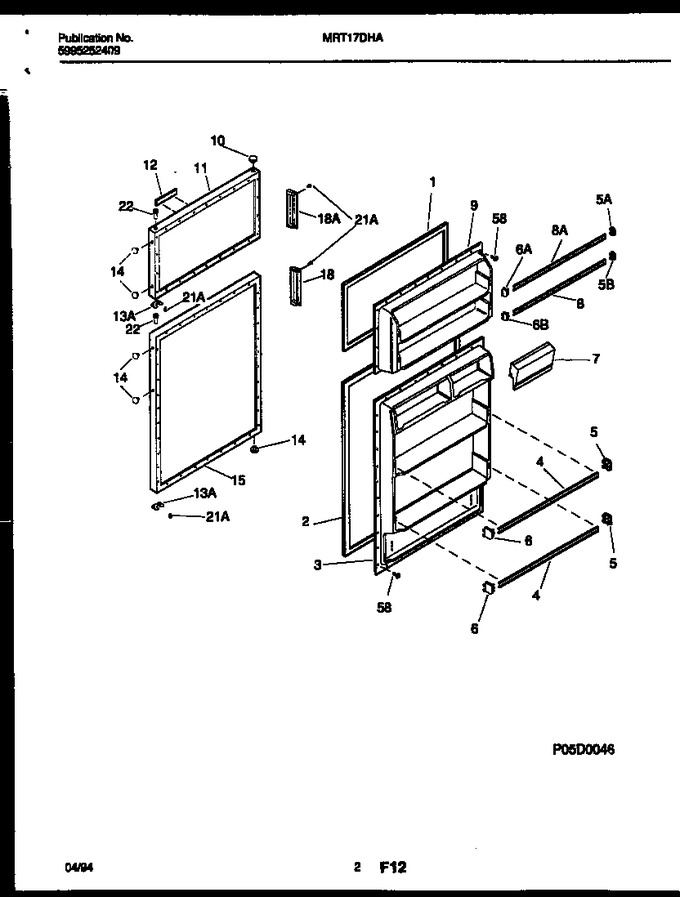

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608901 | Gasket-frzr Door, Almond, Magnetic |
|
- | |||||
| 2 | 215732402 | Gasket-refr Door, Almond, Magnetic |
|
- | |||||
| 3 | 5303281227 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366002 | Rack-door, Wide (Replaces: 5303280367) |
|
Immediately | $ 65.83 | ||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303276149 | Door-dairy |
|
- | |||||
| 8 | 5303280621 | Rack-door, Wide |
|
- | |||||
| 9 | 5303276517 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916567 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 215503711 | Nameplate/frame, Almond, W/ Mtg Tape |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916562 | Panel-refr Door, Almond, W/insulation |
|
- | |||||
| 18 | 5303273080 | Handle-door, Almond |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *98209 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 18A | 5303273082 | Handle-door, Almond |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 5A | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 5B | 3206161 | Support-door Rack, Rh |
|
- | |||||
| 6A | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 | ||||
| 6B | 3206162 | Support-door Rack, Lh |
|
- | |||||
| 8A | 5303280622 | Rack-door, Narrow |
|
- |
