SELECT A DIAGRAM

01 - Freezer Compartment


02 - Optional Ice Maker Kit (imktm1)

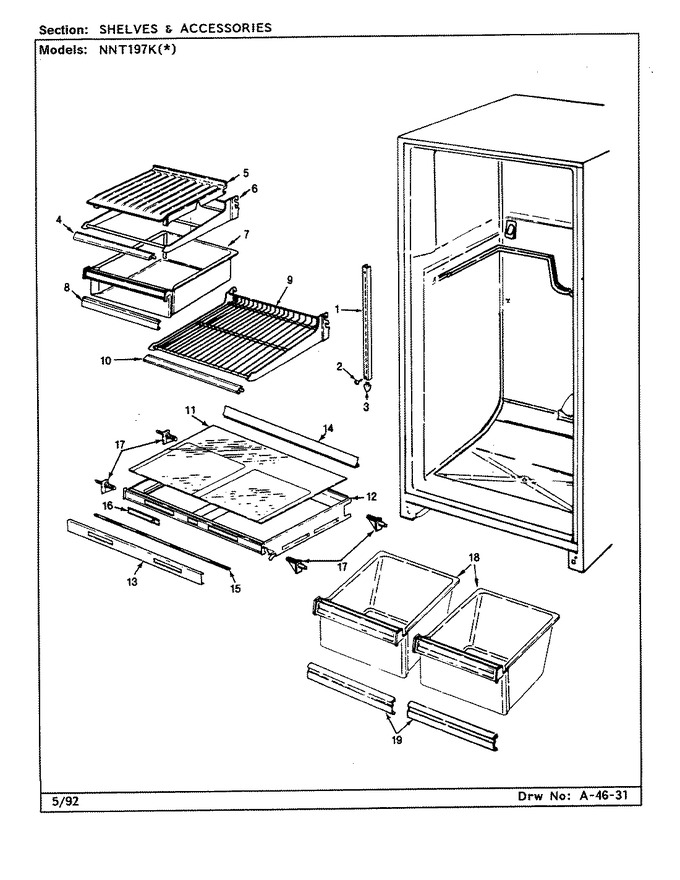

03 - Shelves & Accessories


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-5		Support		Appelez-nous	-
1	60096-6		Support		Appelez-nous	-
1	60096-4		Support		Appelez-nous	-
2	400037-1		Screw		Appelez-nous	-
3	60340-1		End Cap, Center Rail		Appelez-nous	-
4	60414-62		Trim		Appelez-nous	-
5	60075-1		Cover		Appelez-nous	-
6	60416-4		Shelf		Appelez-nous	-
7	66524-21		Pan, Meat		Appelez-nous	-
8	66230-13		Trim		Appelez-nous	-
9	60417-5		Shelf		Appelez-nous	-
10	60414-62		Trim		Appelez-nous	-
11	68743-13		Shelf, Crisper		Appelez-nous	-
12	68735-1		Shelf, Crisper		Appelez-nous	-
13	68744-4		Trim		Appelez-nous	-
14	68798-1		Trim, Crisper Shelf (rear)		Appelez-nous	-
15	68797-1		Seal		Appelez-nous	-
16	68742-2		Slide, Control		Appelez-nous	-
17	68836-1		Stud, Crisper Support		Appelez-nous	-
18	68222-547		Pan, Crisper		Appelez-nous	-
19	66230-14		Trim		Appelez-nous	-
