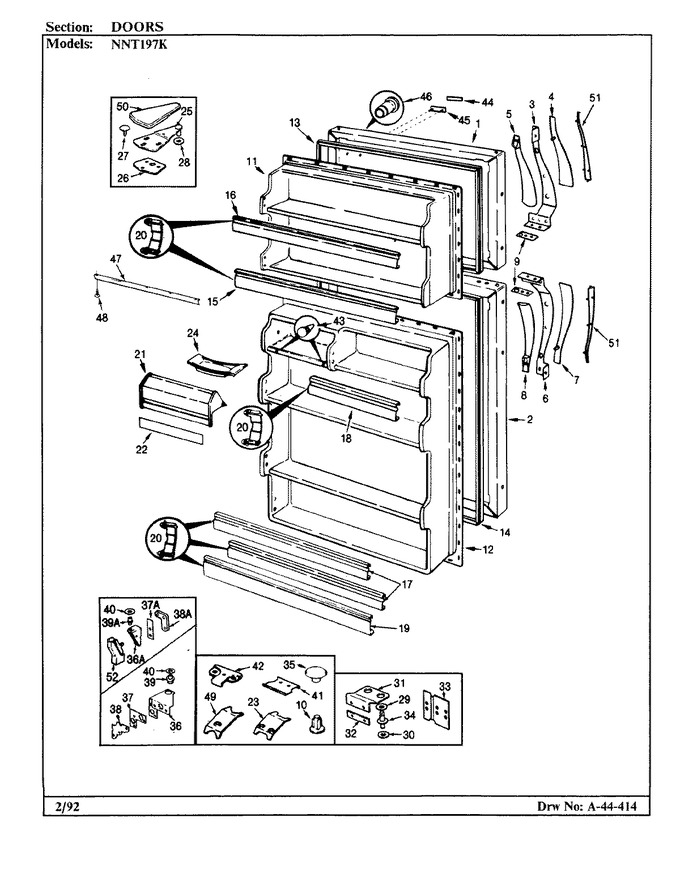

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-2-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68473-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	68036-1		Insert		Appelez-nous	-
5	60580-3		Insert		Appelez-nous	-
6	65275-57		Screw		Appelez-nous	-
6	66255-2		Door Handle		Appelez-nous	-
7	65275-53		Screw		Appelez-nous	-
7	68036-1		Insert		Appelez-nous	-
8	60580-3		Insert		Appelez-nous	-
9	68776-1		Shim Handle----na		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	65928-18		Liner, Door		Appelez-nous	-
12	68887-1		Inner Panel		Appelez-nous	-
12	9986-12		Screw,door Liner		Appelez-nous	-
13	66199-5		Gasket, Frz. Door		Appelez-nous	-
14	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-286)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-287)				$ 129.55
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-335)				$ 129.55
20	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
21	60406-43		Door, Dairy		Appelez-nous	-
22	68128-16		Insert		Appelez-nous	-
23	60123-2		Clip, Stop Screw		Appelez-nous	-
24	29936-2		Tray, Butter		Appelez-nous	-
25	53709-20		Hinge, Upper		Appelez-nous	-
25	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
26	65031-1		Shim, Upper Hinge		Appelez-nous	-
27	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
28	54233-1		Washer				$ 7.71
29	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
30	54233-2		Washer		Appelez-nous	-
31	65275-55		Screw		Appelez-nous	-
31	68811-2		Hinge, Center		Appelez-nous	-
32	68812-1		Shim, Center Hinge		Appelez-nous	-
33	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
34	67322-1		Pin, Center Hinge		Appelez-nous	-
35	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
36	403100-1		Screw		Appelez-nous	-
36	67714-6		Hinge, Lower		Appelez-nous	-
37	60626-1		Shim, Lower Hinge		Appelez-nous	-
38	403100-1		Screw		Appelez-nous	-
38	65790-3		Tapping Plate		Appelez-nous	-
39	68788-1		Hinge Pin		Appelez-nous	-
40	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
41	60030-1		Door Stop		Appelez-nous	-
42	9986-108		Screw		Appelez-nous	-
42	60419-10		Door Stop		Appelez-nous	-
44	66982-8		Bezel, Nameplate		Appelez-nous	-
45	66986-3		Bezel, Nameplate		Appelez-nous	-
46	29356-1		Retainer, Nameplate		Appelez-nous	-
47	68544-2		Gasket, Secondary		Appelez-nous	-
48	56686-5		Clip, Secondary Seal		Appelez-nous	-
49	56209-3		Clip, Stop Screw		Appelez-nous	-
50	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
50	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
50	65003-2		Cover, Upper Hinge (hw)		Appelez-nous	-
51	68048-1		Insert		Appelez-nous	-
