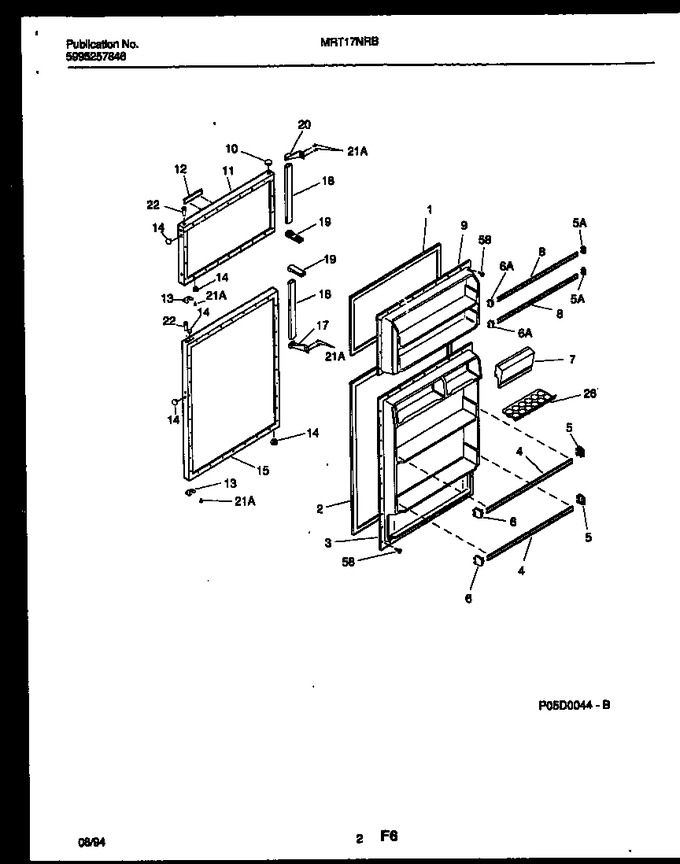

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288856		Gasket-frzr Door, Almond, Magnetic				$ 72.92
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	215026201		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door, Long/wide   (Replaces: 215366034)			Immediately	$ 65.83
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304655		Door-dairy		Appelez-nous	-
8	5303300237		Rack-door, 23.97`` X 1.12``				$ 133.93
9	5303290026		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	3916416		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215366311		Frame - Nameplate, Almond		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	3916420		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302991		Handle Door, Almond		Appelez-nous	-
19	5303001296		Handle End, (2)				$ 86.36
20	5303001014		Handle End		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*11097	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12B	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
5A	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
6A	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
