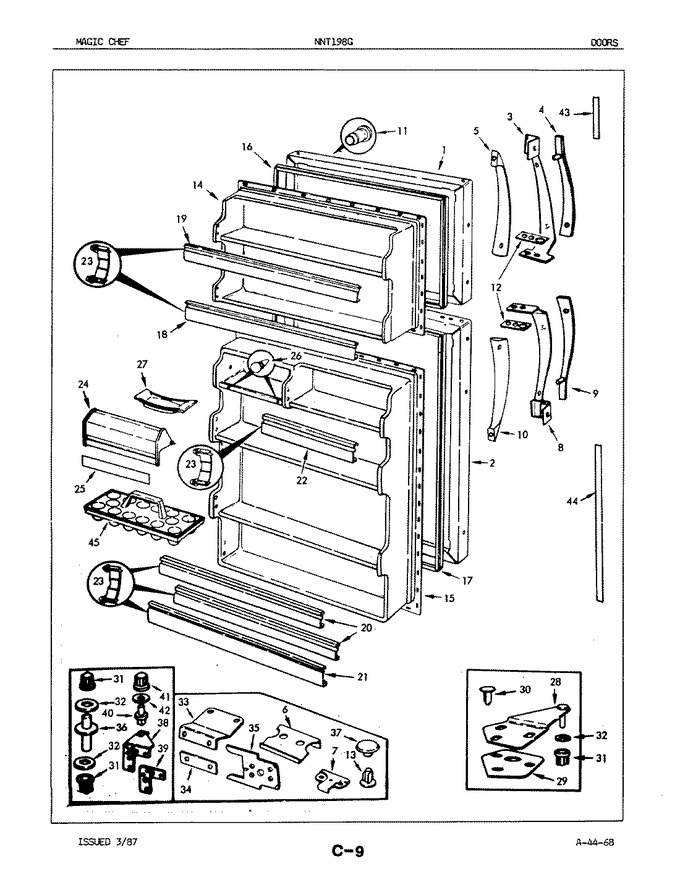

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-54-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60032-54-AM		Outer Panel		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	66145-2		Insert		Appelez-nous	-
5	9986-112		Screw		Appelez-nous	-
5	60445-1		Insert		Appelez-nous	-
6	60030-1		Door Stop		Appelez-nous	-
7	60419-1		Door Stop		Appelez-nous	-
8	66255-2		Door Handle		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
9	60123-1		Clip		Appelez-nous	-
9	56209-3		Clip, Stop Screw		Appelez-nous	-
9	66145-2		Insert		Appelez-nous	-
10	60445-1		Insert		Appelez-nous	-
11	65211-1		Retainer, Nameplate		Appelez-nous	-
12	60456-1		Shim		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	60042-27		Inner Panel		Appelez-nous	-
15	60049-30		Inner Panel		Appelez-nous	-
15	9986-12		Screw,door Liner		Appelez-nous	-
16	60462-5		Gasket, Door		Appelez-nous	-
17	WP70048-3		Gasket, Door   (Replaces: 60462-6)				$ 283.11
18	66210-2		Trim, Shelf		Appelez-nous	-
19	WP61003045		Trim, Shelf   (Replaces: 66210-3)				$ 129.55
20	66210-2		Trim, Shelf		Appelez-nous	-
21	66210-12		Trim, Shelf		Appelez-nous	-
22	66210-11		Trim, Shelf		Appelez-nous	-
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	60406-19		Door, Dairy		Appelez-nous	-
25	60573-36		Insert		Appelez-nous	-
26	28272-6		Bumper, Door		Appelez-nous	-
27	29936-2		Tray, Butter		Appelez-nous	-
28	53709-18		Door Hinge, Upper		Appelez-nous	-
28	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
29	65031-1		Shim, Upper Hinge		Appelez-nous	-
30	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
31	66036-1		Bushing,top/center Hinge		Appelez-nous	-
32	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
32	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
33	60031-2		Door Hinge, Center		Appelez-nous	-
34	60034-1		Spacer, Center Hinge		Appelez-nous	-
35	60622-1		Tapping Plate		Appelez-nous	-
35	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
36	60035-4		Pin, Center Hinge		Appelez-nous	-
37	56186-6		Plug Button, (almond)		Appelez-nous	-
38	403062-5		Screw		Appelez-nous	-
38	60630-8		Door Hinge, Lower		Appelez-nous	-
39	60626-1		Shim, Lower Hinge		Appelez-nous	-
40	53672-1		Pin, Lower Hinge		Appelez-nous	-
41	66034-1		Bushing, Lower Hinge				$ 19.76
42	54233-2		Washer		Appelez-nous	-
43	56209-3		Clip, Stop Screw		Appelez-nous	-
43	9986-108		Screw		Appelez-nous	-
43	60453-10		Handle Ext		Appelez-nous	-
44	60453-11		Handle Ext		Appelez-nous	-
45	60066-5		Tray, Egg		Appelez-nous	-
